Carbide End Mills - Made in North America

Industrial Quality Solid Carbide End Mills for Metal

Skookum Brand – Factory Direct!

Use the filters below to set the parameters for the end mill you need. As you adjust the filters, product links will appear at the bottom of the page that match your selections.

Looking for end mills or spiral cutters for wood? Click Here

Click “Reset Filters” to clear all filters. You can also reset an individual filter by selecting “Clear Selection” within that filter.

Diameter - Imperial
Diameter - Metric
End Cut Style
Number of Flutes
Depth Of Cut
Shank Diameter
Overall Length
Shank Type
Coating
Performance
Retrieving your results - please wait

Order $200 Mix & Match for Free Shipping

Do you prefer to look through a catalogue?

Download Catalogue

Premium Carbide End Mills engineered to the highest quality with the best raw material & coatings for demanding applications. High tech geometries manufactured in Canada on the most state of the art 5 Axis CNC Grinders in the world. Extremely rigid quality control to assure the tightest tolerances & consistency.

Performance Guide

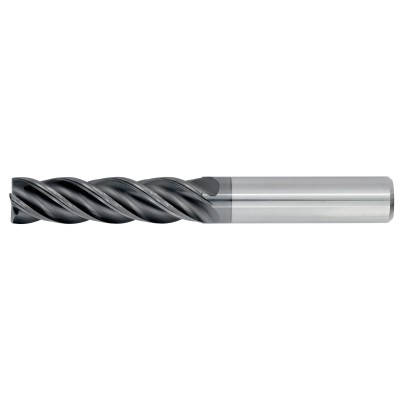

Note: For roughing endmills, use our HP or UHP series mills as the feed rate on those is the same as a rougher!

Standard

  • General Purpose
  • 30 deg Helix Carbide
  • 10% Micro Grain Carbide
  • Diameter Tolerances: +.0.0000”/-0.0020”

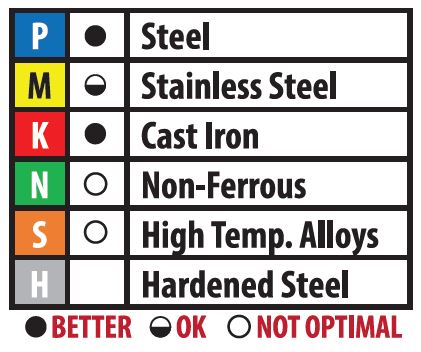

High Performance

  • Special Helix Design
  • Variable Pitch to Reduce Chatter
  • 10% Micro Grain Carbide
  • Diameter Tolerances: +0.0000”/-0.0020”

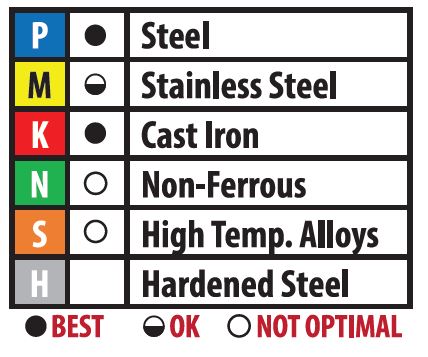

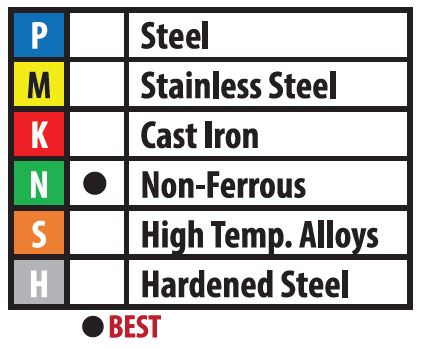

Ultra High Performance/Ultra High Performance Aluminum

  • Special Helix Design
  • Variable Pitch to Reduce Chatter
  • 10% Extra Fine Sub-Micron Carbide
  • Extremely High Transverse Rupture Strength
  • Diameter Tolerances: +0.0000”/-0.0015”

ULTRA High Performance End Mills engineered for High Efficeincy Machining (HEM)

  • Variable Pitch to reduce chatter
  • 10% Extra Fine Sub-Micro Grain Carbide with extremely high Transverse Rupture strength
  • Diameter Tolerances: +0.0000”/-0.0015”

Coating Guide

TiALN (Titanium Aluminum Nitride)

  • Blue-Grey Color; Provides added abrasion resistance & reduced friction for chips plus higher heat resistance to improve tool life

ALL4 (Aluminum Chromium Titanium Nitride)

  • Grey Color; Ultra High Performance coating with extreme heat, abrasion & wear resistance in ferrous applications

ZrN (Zirconium Nitride)

  • Pale Gold Color; Provides high lubricity for machining aluminum & non-ferrous materials

DLC (Diamond Like Carbon)

  • Black Color; Extremely hard with very high wear resistance for machining aluminum & non-ferrous materials

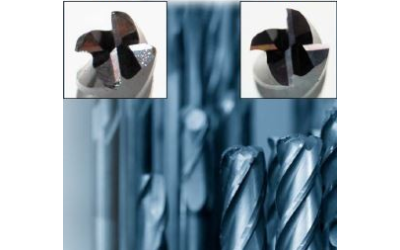

Now Available! – Factory Direct End Mill Regrinding / Sharpening Services



Shop our premium and durable Carbide end mills for metal cutting. Our Carbide cutters use general purpose geometry and high-performance blanks. Our end mills provide perfect and precise cuts on flat surfaces. Plus, since they’re highly heat resistant, our end mills can be used for high speed applications on various types of hard materials. Our Carbide end mills are of the highest quality and guaranteed to get the job done right for you.
