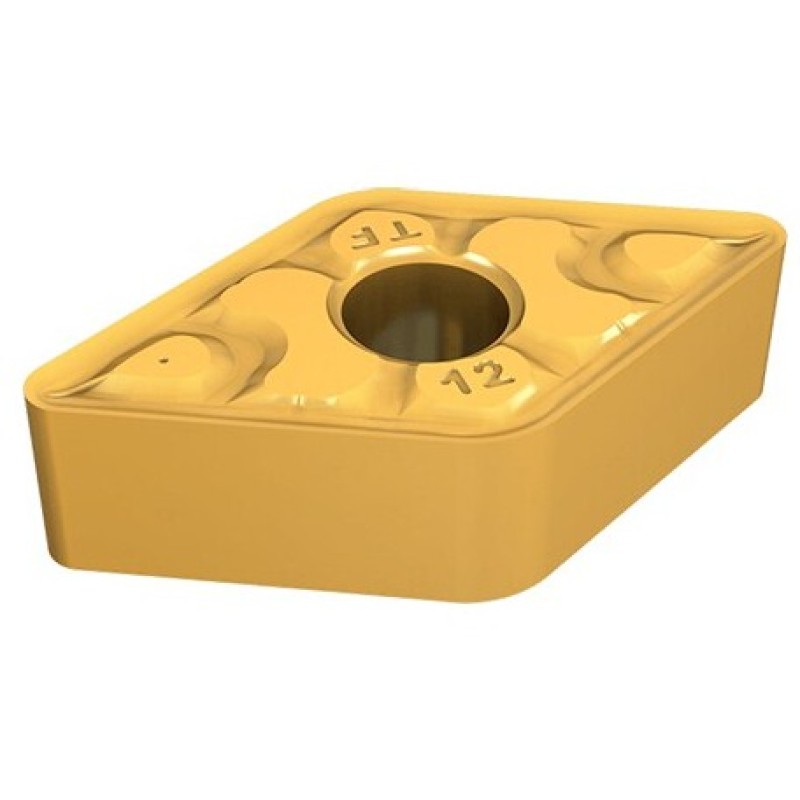

DNMG 432-TF IC907 - Turning Insert

Brand: Canada's Tool Crib
Product Code: EH5504876
Price: $35.82CAD $30.45CAD
Location Availability Min Qty
Canada's Tool Crib In Stock 10
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

DNMG 432-TF IC907

Double-sided, 55° rhombic insert, positive rake angle that varies along the edge to negative in order to prevent chipping. Special design reduces cratering. Used for carbon and alloy steel, stainless steel and high temp. alloys.

Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Tool Type Turn Negative Inserts
Application | Ext. 55° Diamond 62.5° Approac | Ext. 55° Diamond 93° Approach | Int 55° Diamond 93 5° Approach | ISO Turning Inserts | Min D.O.C. 0.039″
Insert Style DNMG Depth of Cut Maximum (APMX) 0.138″
Corner Radius (RE) 0.0315″ Min. Turning Feed (ft(min)) 0.0059 ″/rev
Insert Size 432 Max. Turning Feed (ft(max)) 0.0118 ″/rev
Cutting Edge Length (L) 0.61″ Chip Breaker Type TF
Insert Thickness (S) 0.187″ Measurement Type Inch
Inscribed Circle Diameter (IC) 1/2″ Shape 55° Rhombic
Cutting Edge Material Carbide Series/List # DNMG432TF
Coating TiAlN+TiN Body Material Carbide
Grade IC907
