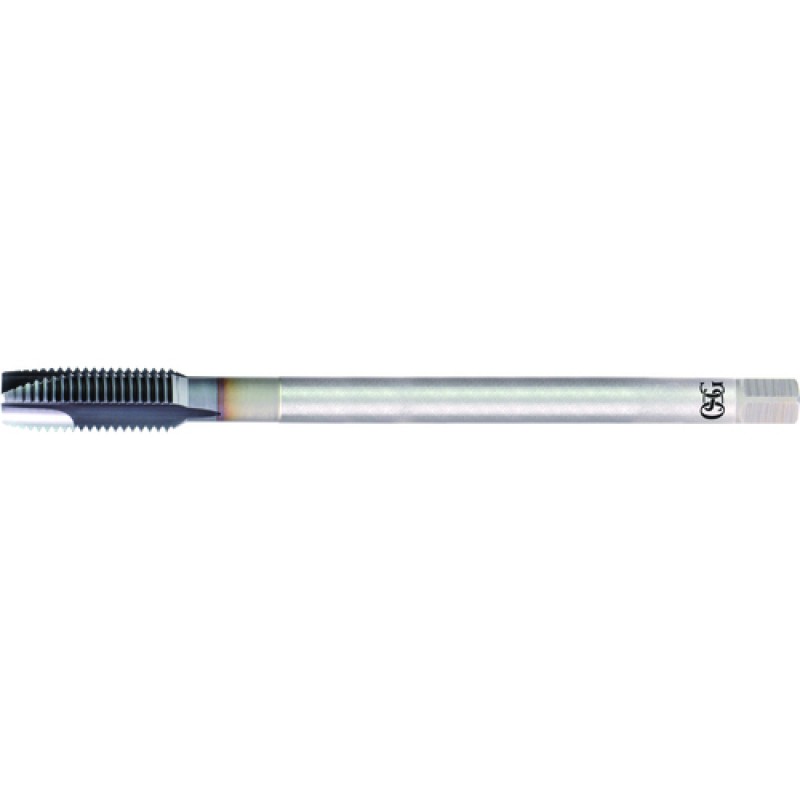

1/4-20 Plug H5 Spiral Point 3 Flutes 6" Long High Speed Steel



For the full selection of taps, Click Here



Brand: Canada's Tool Crib
Product Code: TP531653502108
Price: $116.70CAD $99.20CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Canada's Tool Crib Normally In Stock 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1/4-20X150mm H5 3 Flute Spiral Point Tap TICN

Thread Standard UNC Cutting Edge Material VC10
Thread Size ‎1/4″ - 20 Tool Type Spiral Point Tap
Thread Diameter Size (TDZ) 1/4″ Applicable Material Steel | Aluminum / Non-Ferrous Materials
Threads per Inch (TPI) 20 Connection Diameter Machine Side (DCONMS) 0.255″
Thread Tolerance Class (TCTR) H5 Thread Cutting Part Length (THL) 0.704″
Usable Length (LU) 1.366″ End Shape Spiral Point
Overall Length (OAL) 5.9″ Cutting Direction (HAND) Right Hand
Chamfer ‎3.5P-4.5P Measurement Type Inch
Coating V Coating Series/List # 16535
Flute Count (NOF) 3

Country of Origin

Japan
