Home » Drilling & Cutting » Shaper Cutters » Raised Panel Cutters » Insert Tooling, Raised Panel Cutter Dimar K200B

Insert Tooling, Raised Panel Cutter Dimar K200B

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: K200B
Price: $674.50CAD $607.05CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

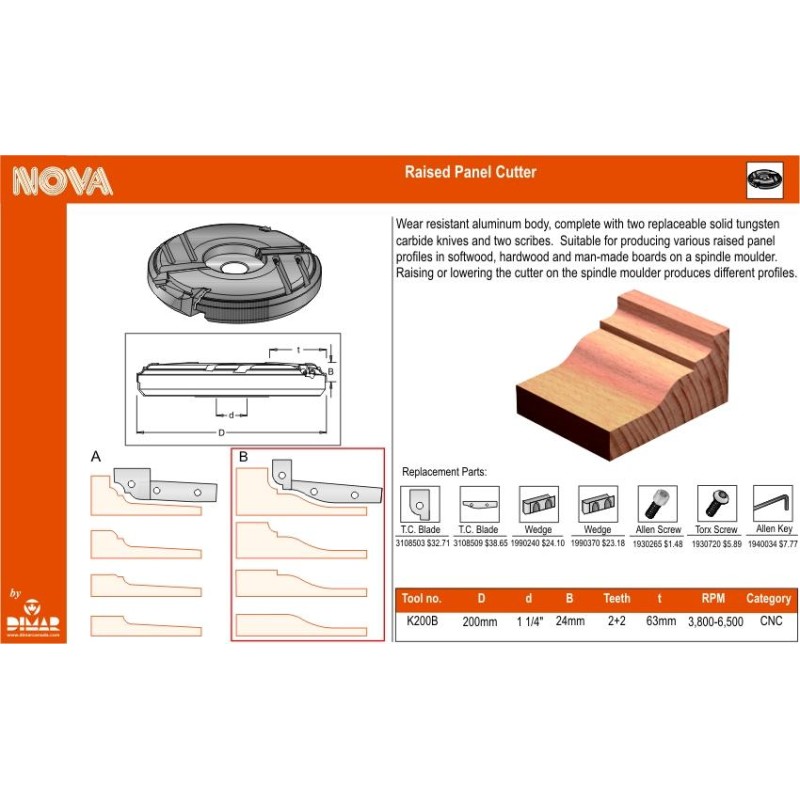

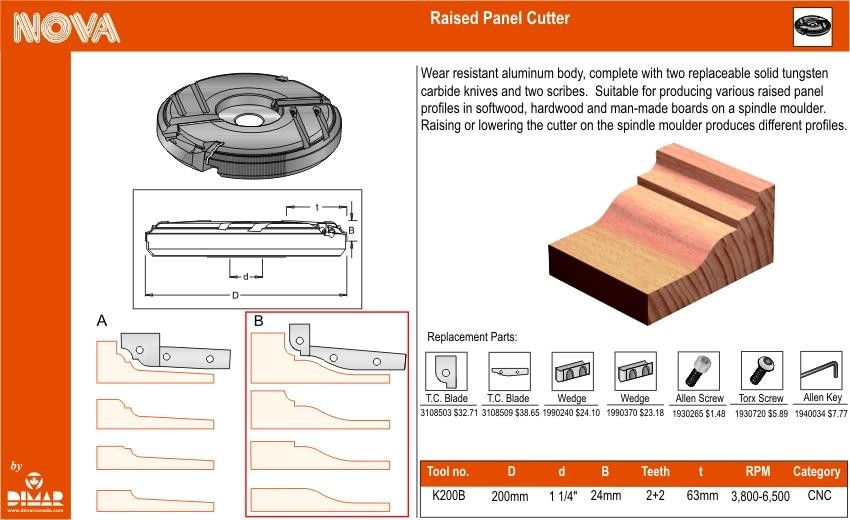

200mm Dia, Carbide Inserts, Raised Panel Cutter, 24mm Cutting Length

This raised panel cutter head has a hard-wearing aluminum tool body with disposable tungsten carbide knives for improved finish.

  • Carbide Inserts for maximum performance
  • Especially suitable for producing various panel profiles in softwood, hardwood, and man-made boards on a spindle molder
  • Raising or lowering the cutter head on the spindle molder produces different profiles
Technology Carbide Inserts
Diameter (D) 200mm
Cutting Height (B) 24mm
Teeth 2+2
Cutting Depth (T) 63mm
Maximum RPM 3,800 - 6,500
Material Soft Wood, Hard Wood, Plywood, Particle Boards, Fibreboards
