Insert Tool, Raised Panel Cutter Set Dimar K126C-SET

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: K126C-SET
Price: $634.09CAD $570.68CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

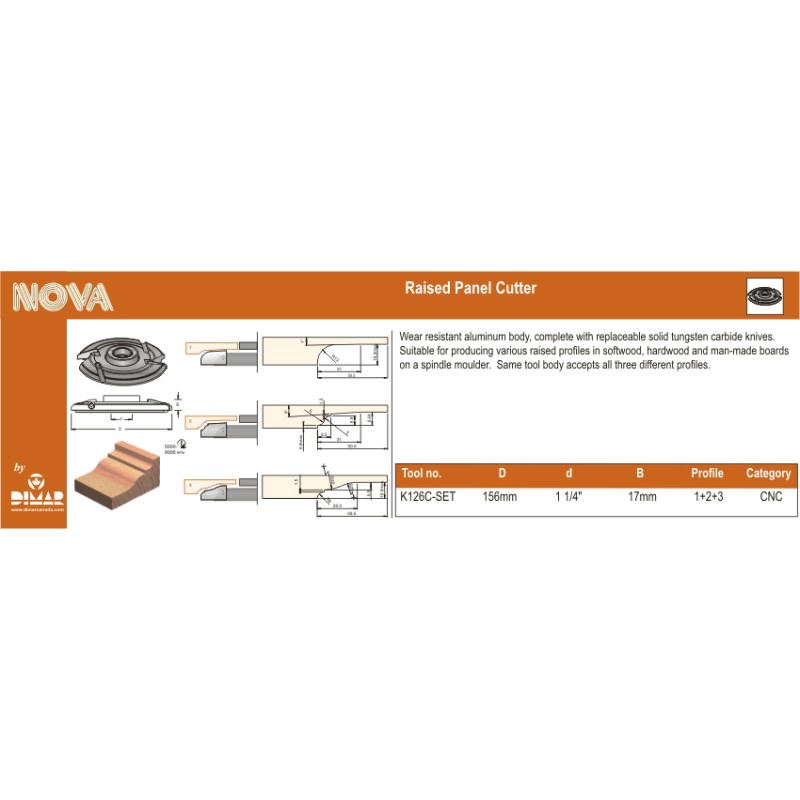

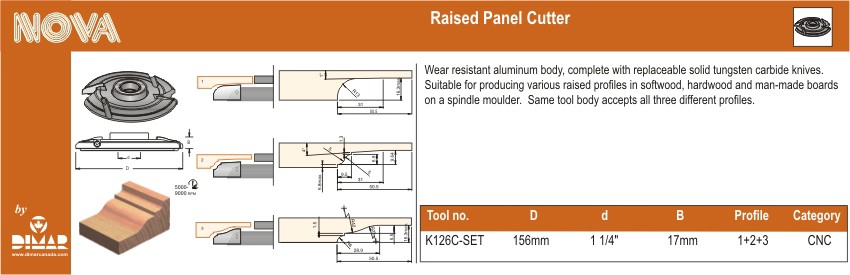

156mm Dia, Carbide Inserts, Raised Panel Cutter, 17mm Cutting Length

This raised panel cutter has a hard-wearing aluminum tool body with disposable tungsten carbide knives for improved finish.

  • Carbide Inserts for maximum performance
  • Especially suitable for producing various panel profiles in softwood, hardwood, and man-made boards on a spindle molder
  • The same tool body accepts all three different profiles

Technology Carbide Inserts
Diameter (D) 156mm
Bore (d) 1 1/4"
Cutting Height (B) 17mm
Maximum RPM 5,000 - 9,000
Material Soft Wood, Hard Wood, Plywood, Particle Boards, Fibreboards
