Insert Tool, Grooving Cutter 4 - 7.5mm Dimar K8C160-4

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: K8C160-4
Price: $926.82CAD $834.14CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

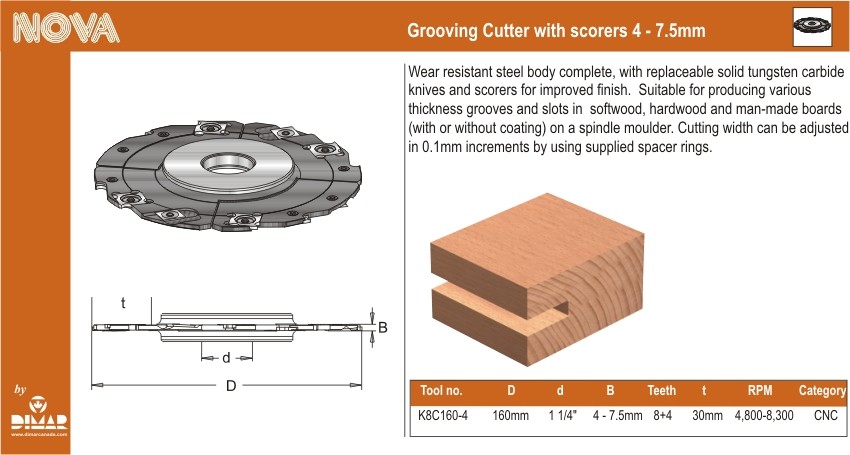

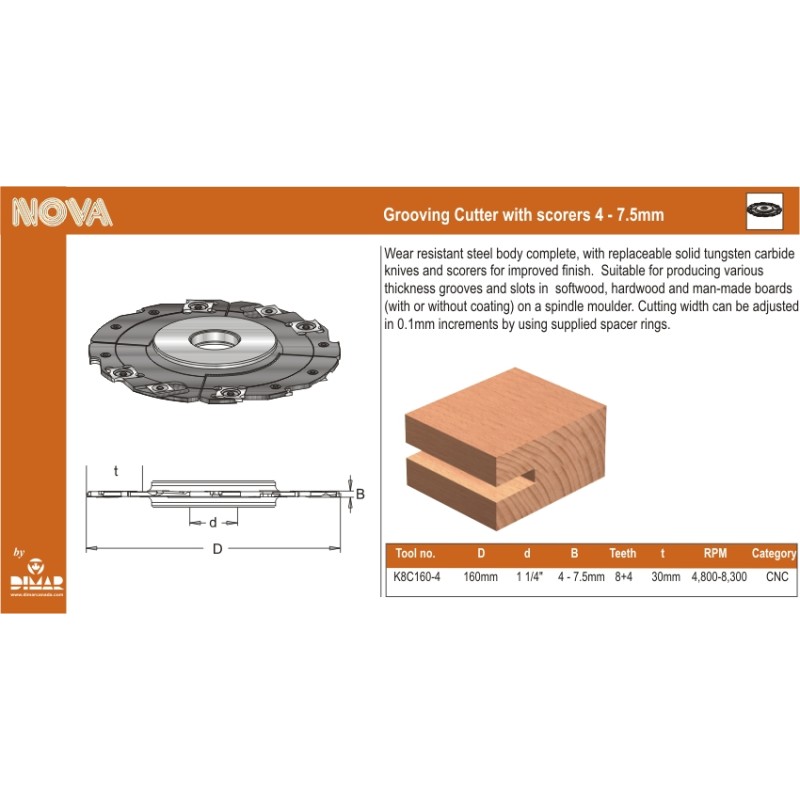

160mm Dia, Carbide Inserts, Adjustable Grooving Cutter with Scorers, 4 - 7.5mm Cutting Height, 8+4 Teeth

This ultimate adjustable grooving cutter with scorers has a hard-wearing steel tool body complete with replaceable solid tungsten carbide knives and scorers for improved finish.

  • Carbide-Tipped for maximum performance
  • Especially suitable for producing various thickness grooves and slots in softwood, hardwood, and man-made boards (with or without coating) on a spindle moulder
  • Cutting width can be adjusted in 0.1mm increments by using supplied spacer rings
Diameter (D) 160mm
Cutting Height (B) 4 - 7.5mm
Cutting Depth (T) 30mm
Teeth 8+4
Maximum RPM 4,800 - 8,300
Technology Carbide Inserts
Material Soft Wood, Hard Wood, Plywood, Particle Boards, Fibreboards
Tools Spindle Moulder
H (Min) 16.6
H (Max) 20
