Insert Tool, Grooving 180mm X 4-7.5mm Dimar K8C180-4B

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: K8C180-4B
Price: $1,025.46CAD $922.91CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

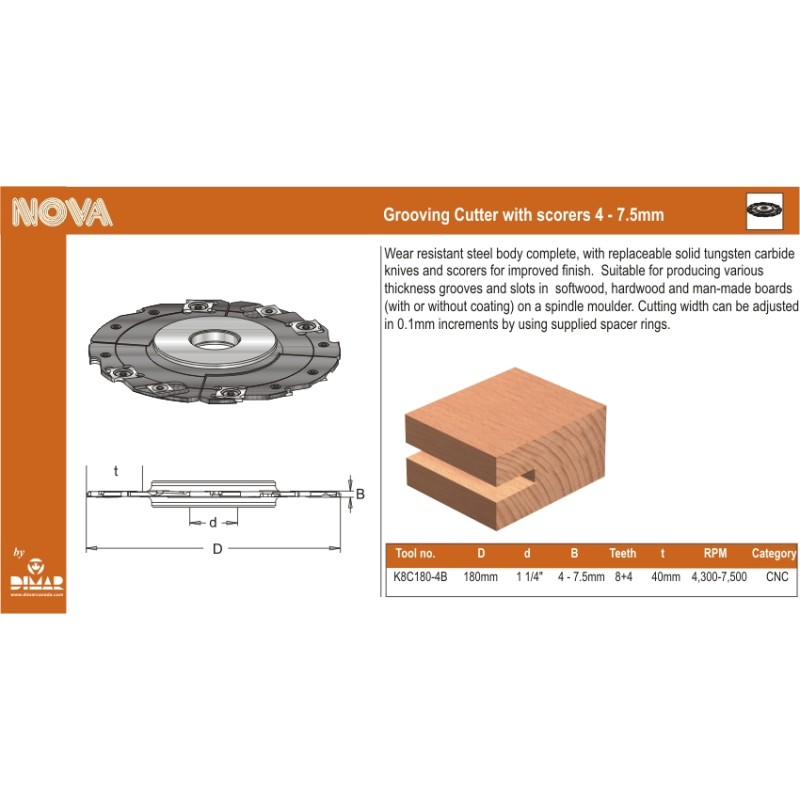

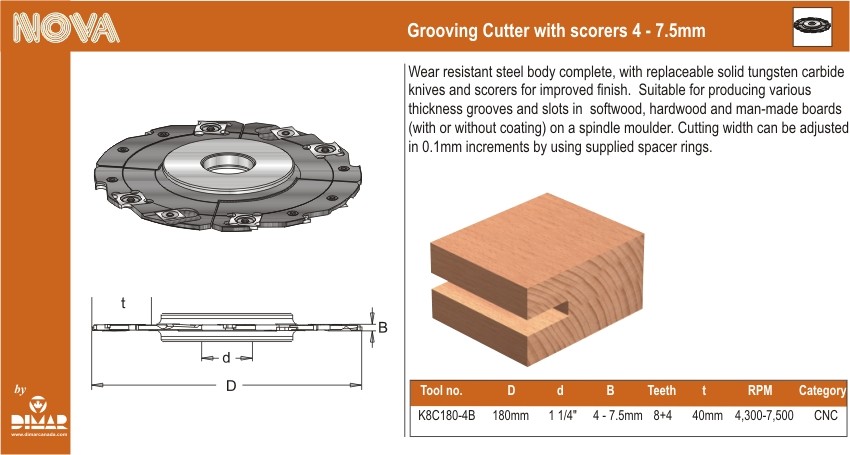

180mm Dia, Carbide Inserts, Adjustable Grooving Cutter with Scorers, 4 - 7.5mm Cutting Height, 8+4 Teeth

This ultimate adjustable grooving cutter with scorers has a hard-wearing steel tool body complete with replaceable solid tungsten carbide knives and scorers for improved finish.

  • Carbide-Tipped for maximum performance
  • Especially suitable for producing various thickness grooves and slots in softwood, hardwood, and man-made boards (with or without coating) on a spindle moulder
  • Cutting width can be adjusted in 0.1mm increments by using supplied spacer rings
Diameter (D) 180mm
Cutting Height (B) 4 - 7.5mm
Cutting Depth (T) 40mm
Teeth 8+4
Maximum RPM 4,300 - 7,500
Technology Carbide Inserts
Material Soft Wood, Hard Wood, Plywood, Particle Boards, Fibreboards
Tools Spindle Moulder
H (Min) 16.6
H (Max) 20
