Insert Adj. Groover W/dial 180x12.5-24 Dimar K8C180-12D

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: K8C180-12D
Price: $1,230.48CAD $1,107.43CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

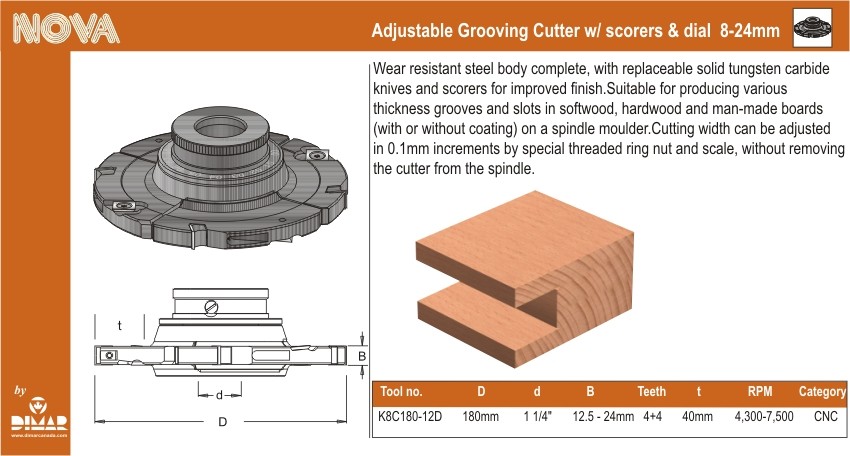

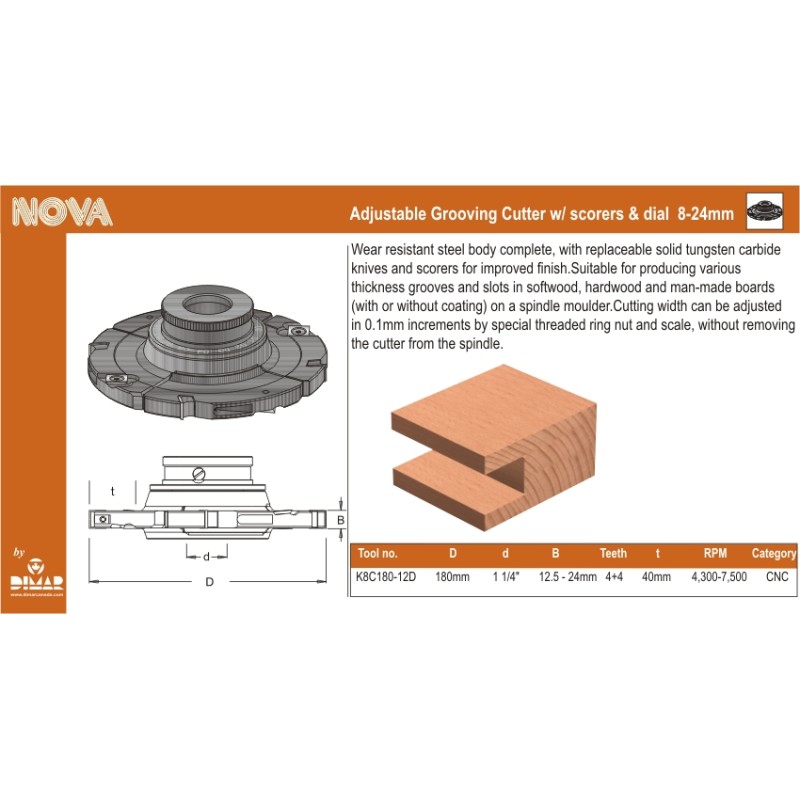

180mm Dia, Carbide Inserts, Adjustable Grooving Cutters with Scorers & Dial, 12.5 - 24mm Cutting Height, 4+4 Teeth

This ultimate adjustable grooving cutter with scorers and dial has a hard-wearing steel tool body complete with replaceable solid tungsten carbide knives and scorers for improved finish.

  • Carbide-Tipped for maximum performance
  • Especially suitable for producing various thickness grooves and slots in softwood, hardwood, and man-made boards (with or without coating) on a spindle moulder
  • Cutting width can be adjusted in 0.1mm increments by a special threaded ring nut and scale, without removing the cutter from the spindle
Diameter (D) 180mm
Cutting Height (B) 12.5 - 24mm
Cutting Depth (T) 40mm
Teeth 4+4
Maximum RPM 4,300 - 7,500
Technology Carbide Inserts
Material Soft Wood, Hard Wood, Plywood, Particle Boards, Fibreboards
Tools Spindle Moulder
