Insert Convex Cutter, 20m Radius Dimar K169C160-20

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: K169C160-20
Price: $643.46CAD $546.95CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

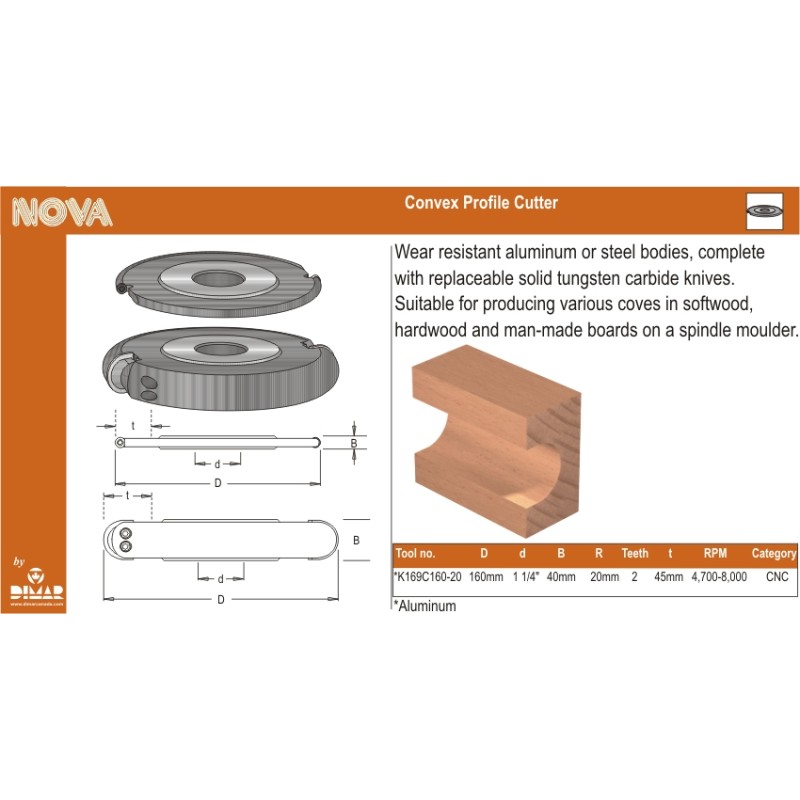

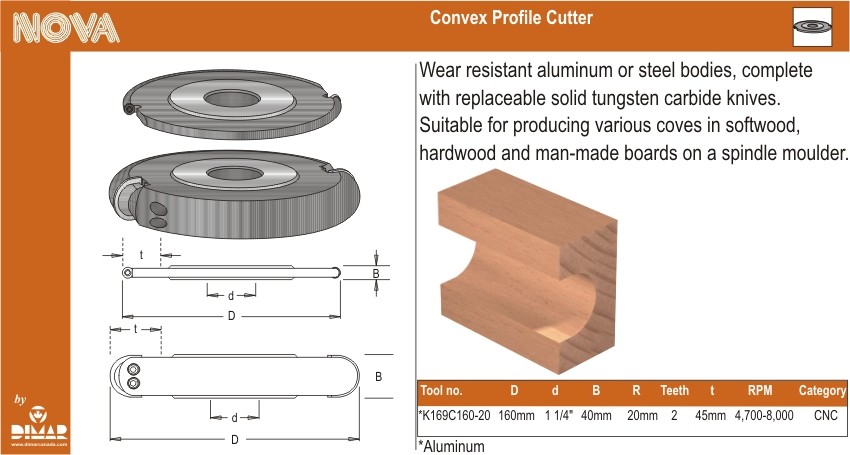

160mm Dia, Carbide Inserts, Convex Profile Cutter, 2 Teeth, 40mm Cutting Length

This convex profile cutter has a hard-wearing aluminum or steel tool body, complete with disposable tungsten carbide knives.

  • Carbide Inserts for maximum performance
  • Especially suitable for producing various radii coves or rule joints in softwood, hardwood, and man-made boards on a spindle molder
  • All cutterheads can be used with a 120mm bearing for cutting uniform depth profiles
Technology Carbide Inserts
Diameter 160mm
Bore (d) 1 1/4"
Cutting Height (B) 40mm
Radius (R) 20mm
Teeth 2
Cutting Depth (T) 45mm
Maximum RPM 4,700-8,000
Material Soft Wood, Hard Wood, Plywood, Particle Boards, Fibreboards
