Wp 10 Pc Template Rings, Solid Brass Dimar WP-T-RINGS

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: WP-T-RINGS
Price: $55.64CAD $50.08CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

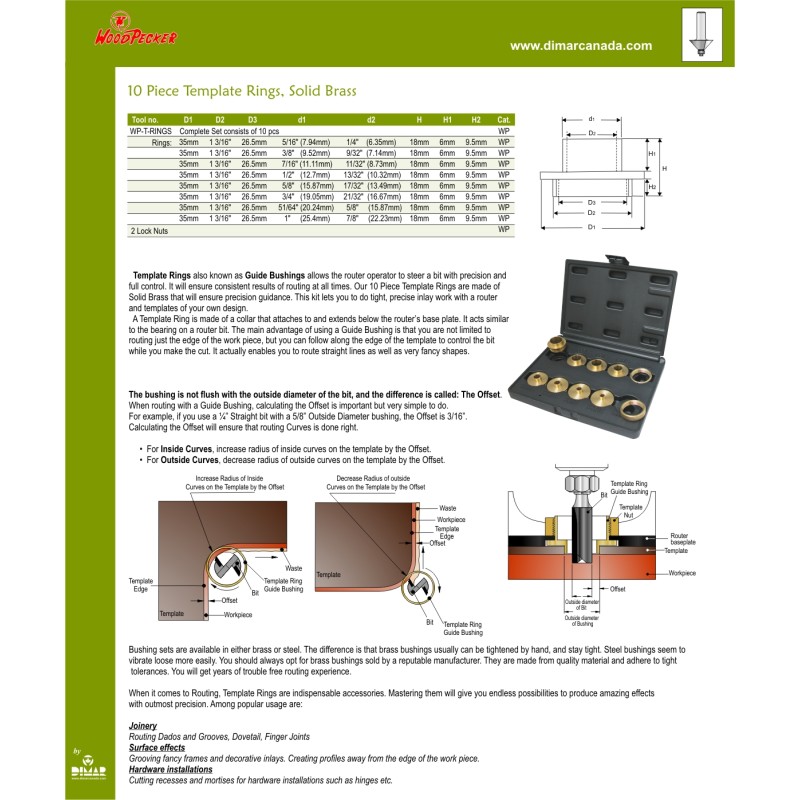

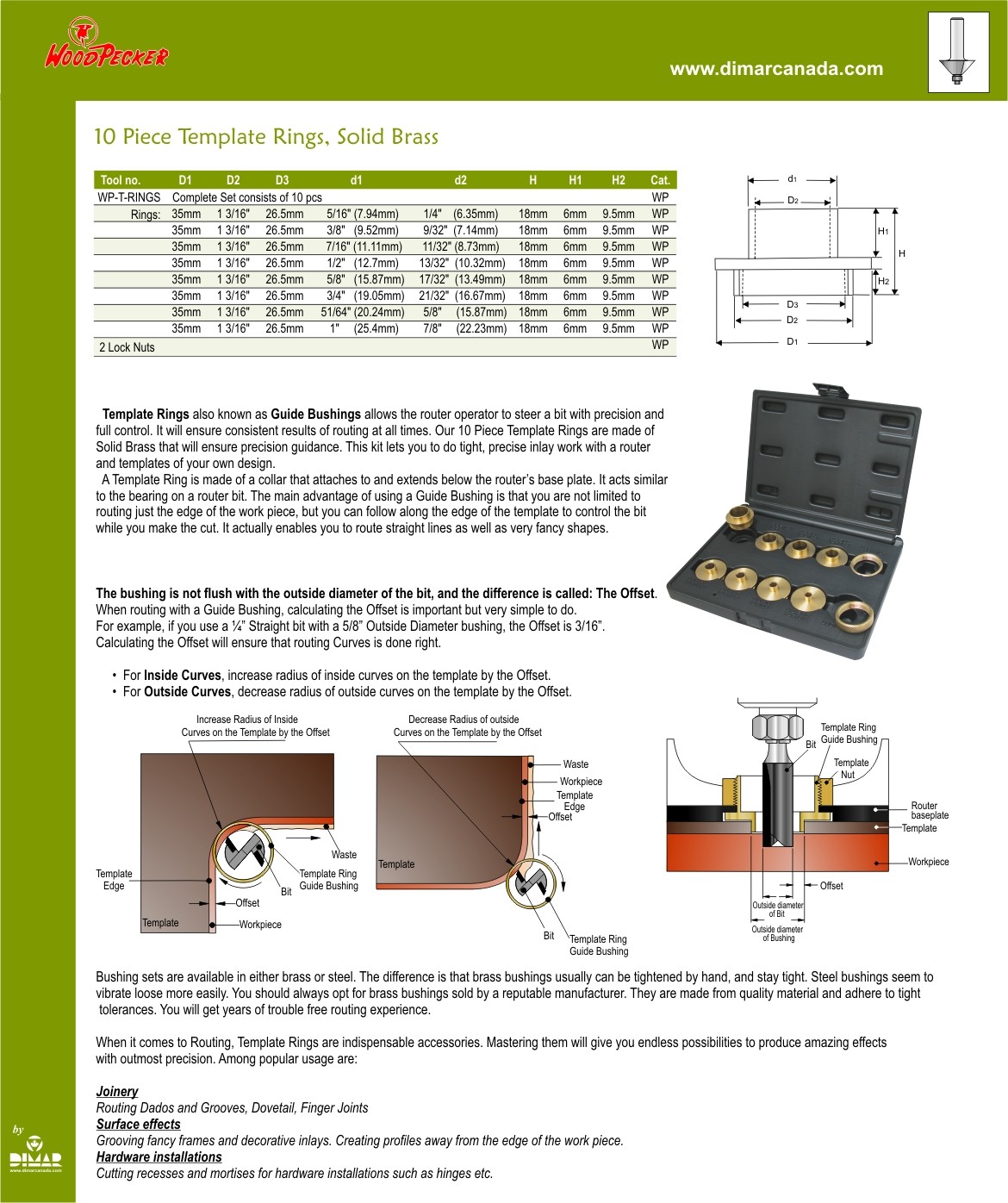

Solid Brass, 10 Piece Template Rings

Expand the capability of your router with this 10-piece brass bushing set. Use your router as a precision cutting machine for duplicating patterns, cutting signs, creating dovetails, or any other project requiring template work. Unlike bearing tipped bits which can fail, this heavy-duty, precision machined brass bushing set provides worry-free routing. All guides protrude 0.240" for work with any template material of 1/4" thickness and larger. These guides will fit any router sub-base of the Porter-Cable style.

  • 2 each lock nuts
  • 8 each guides with the following outside diameters:
  • 5/16", 3/8", 7/16", 1/2", 5/8", 3/4", 51/64", and 1"


WP-T-RINGS Complete Set consists of 10 pcs


Tool no D1 D2 D3 d1 d2 H H1 H2
Rings: 35mm 1 3/16" 26.5mm 5/16"    (7.94mm) 1/4"    (6.35mm) 18mm 6mm 9.5mm
  35mm 1 3/16" 26.5mm

3/8"      (9.52mm)

 9/32"   (7.14mm) 18mm 6mm 9.5mm
  35mm 1 3/16" 26.5mm 7/16" (11.11mm) 11/32" (8.73mm) 18mm 6mm 9.5mm
  35mm 1 3/16" 26.5mm 1/2"    (12.7mm)   13/32"(10.32mm) 18mm 6mm 9.5mm
  35mm 1 3/16" 26.5mm 5/8"   (15.87mm) 17/32"(13.49mm) 18mm 6mm 9.5mm
  35mm 1 3/16" 26.5mm 3/4"   (19.05mm) 21/32"(16.67mm) 18mm 6mm 9.5mm
  35mm 1 3/16" 26.5mm 51/64(20.24mm) 5/8"   (15.87mm) 18mm 6mm 9.5mm
  35mm 1 3/16" 26.5mm 1"        (25.4mm) 7/8"    (22.23mm) 18mm 6mm 9.5mm
2 Lock Nuts
