117RL8-22 Round Over Plunge Bit With Boring Point 2 Flute 1/8" Radius 1/2" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 117RL8-22
Price: $101.97CAD $91.77CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

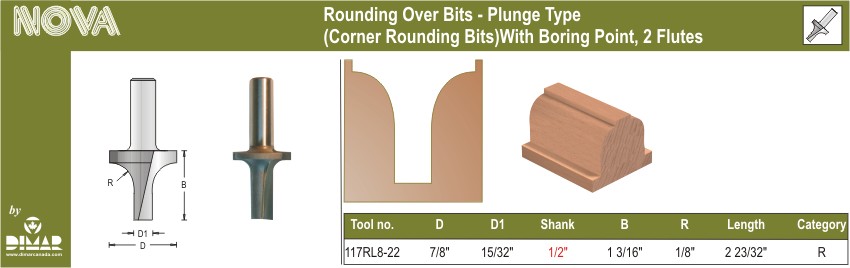

7/8" Dia, Carbide Tipped, Rounding Over Plunge Bits with Boring Point , 2 Flutes, 1/2" Shank, 2 23/32" Length

This ultimate rounding over plunge bit with a boring point is recommended for creating a flat-bottom groove between two quarter-round shapes. The appearance is enhanced by the small vertical sides that continue just below the radius. The radii can be flushed with the workpiece surface or recessed, based on the cutting depth adjustment. The profile can be created on an edge with an edge guide or a router table with a fence.

  • Carbide-tipped for maximum performance
  • Cuts most hardwood and softwood
  • Can be used on most CNC, hand-held routers, and table-mounted portable routers

Diameter (D) 7/8"
D1 15/32"
Number of Cutters 2
Shank (d) 1/2"
Cutting Length (B) 1 3/16"
B1 28mm
Radius (R) 1/8"
Overall Length (L) 2 23/32"
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood
