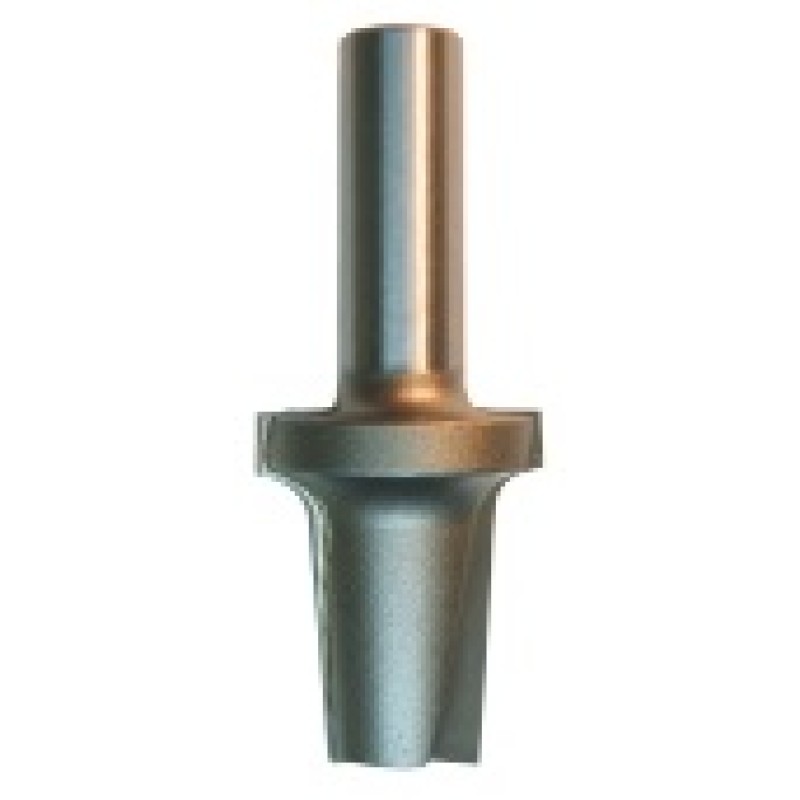

117R8-30SP Corner Rounding Bit 5mm Radius 1/2" Shank 5° Angle

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 117R8-30SP
Price: $202.66CAD $172.27CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

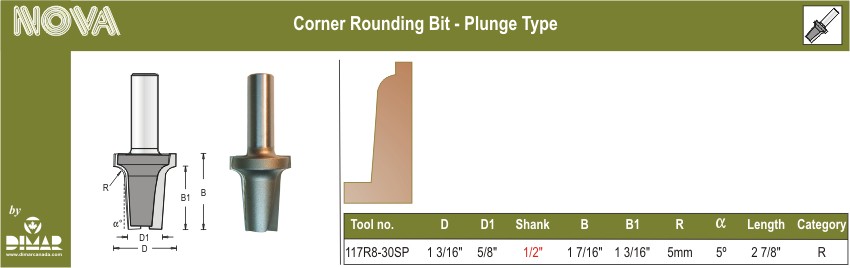

1 3/16" Dia, Carbide Tipped, Corner Rounding Bit, 2 Flutes, 1/2" Shank, 2 7/8" Length

This ultimate rounding over plunge bit with a boring point is recommended for creating a flat-bottom groove between two quarter-round shapes. The appearance is enhanced by the small vertical sides that continue just below the radius. The radii can be flushed with the workpiece surface or recessed, based on the cutting depth adjustment. The profile can be created on an edge with an edge guide or a router table with a fence.

  • Carbide-tipped for maximum performance
  • Cuts most hardwood and softwood
  • Can be used on most CNC, hand-held routers, and table-mounted portable routers
Diameter (D) 1 3/16"
D1 5/8"
Number of Cutters 2
Shank (d) 1/2"
Cutting Length (B) 1 7/16"
B1 1 3/16"
Radius (R) 5mm
Degree (a°) 5°
Overall Length (L) 2 7/8"
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood
