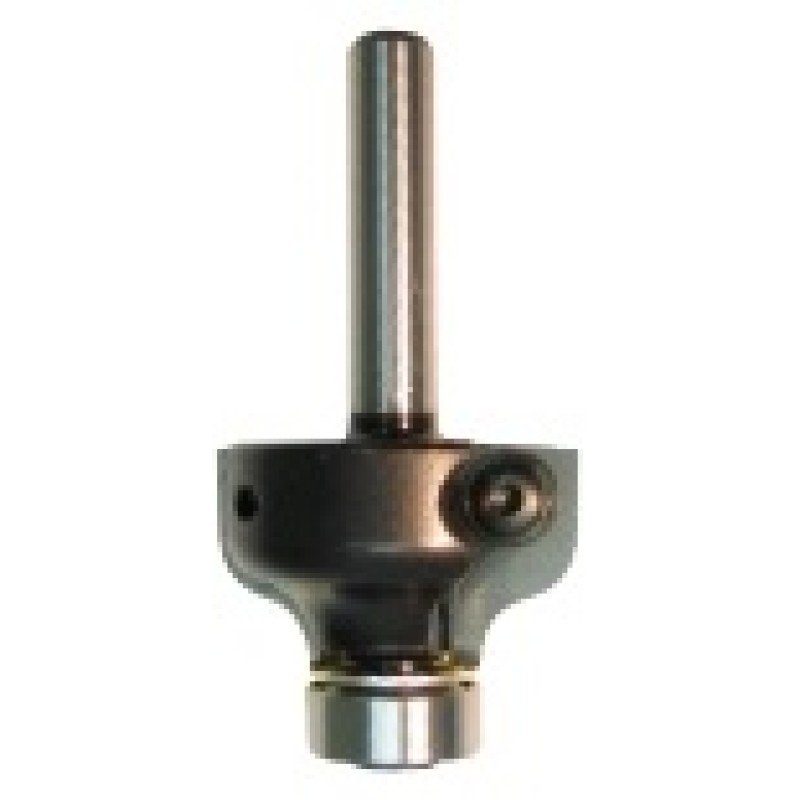

38R4-4.5M Ogee Fillet Bit 2 Flute 4.5mm Radius 1/4" Shank 3138501 Knife

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 38R4-4.5M
Price: $81.18CAD $73.06CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1" Dia, Carbide Inserts, Ogee Fillet Bit, 2 Flutes, 1/4" Shank, 2 5/16" Length

Dimar's Carbide Inserts Ogee Fillet Bits contain a curve, shaped somewhat like an S, consisting of two arcs that curve in opposite senses so that the ends are parallel. In architecture, the name is also used for a moulding with an ogee-shaped profile, consisting (going from low to high) of a concave arc flowing into a convex arc, with vertical ends. Some slight variations of the standard ogee are also known as “wavy bits”. A “stepped ogee” is basically an ogee bit with a step-like design at the intersection of the two curves, to give it a detailed design.

  • Two Flutes are ideal when fine finishing is a priority.
  • Cuts most hardwoods and softwoods.
  • Use on CNC, Hand-held routers, and table-mounted portable routers.

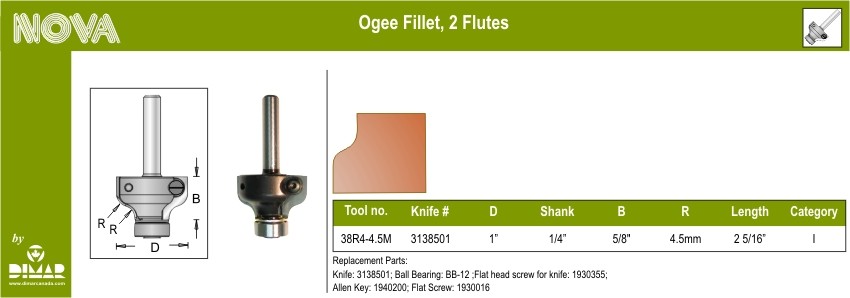

Diameter (D) 1"
Number of Cutters 2
Shank (d) 1/4"
Cutting Length (B) 5/8"
Radius (R) 4.5mm
Overall Length (L) 2 5/16"
Technology Carbide Inserts
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood
