N8-B55 Ogee Plunge Bit Type B 2 Flute 5/32" Radius 1/2" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: N8-B55
Price: $106.87CAD $96.18CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1 1/4" Dia, Carbide Insert, Ogee Plunge Inserts, Type B, 2 Flutes, 1/2" Shank, 2 5/8" Length

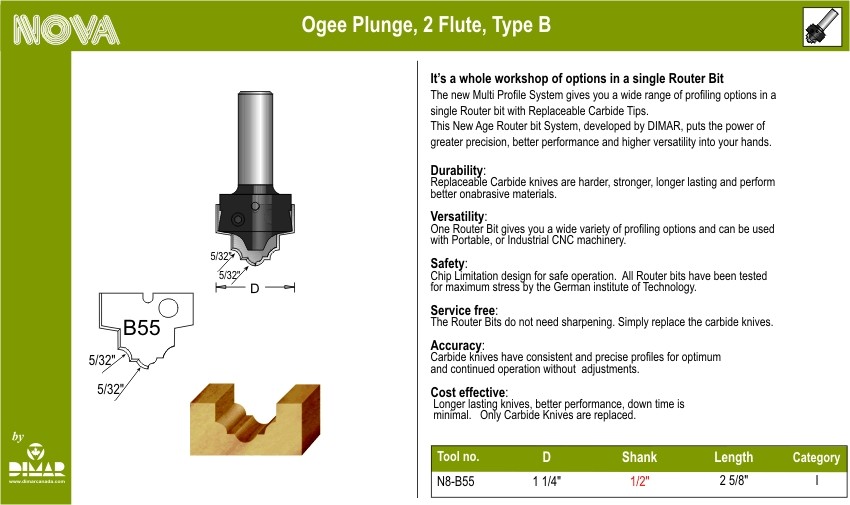

Dimar's Multi Profile Router is the perfect solution for creating many complex profiles. Multi Profile Router gives the widest range of profiling options in a single router bit with replaceable and reversible carbide tips. It is the entire workshop of options in a single router bit. Dimar's carbide-tipped Ogee bit consists of two arcs that curve in opposite sides, resulting in parallel ends. In architecture, the name is also used for molding with an ogee-shaped profile, consisting (going from low to high) of a concave arc flowing into a convex arc, with vertical ends. Some slight variations of the standard ogee are also known as “wavy bits”.

  • Perfect for vertical and gradual plunging.
  • Cuts most composite materials, plywood, hardwoods, and softwoods.
  • Use on CNC, Hand-held routers, and table-mounted portable routers.

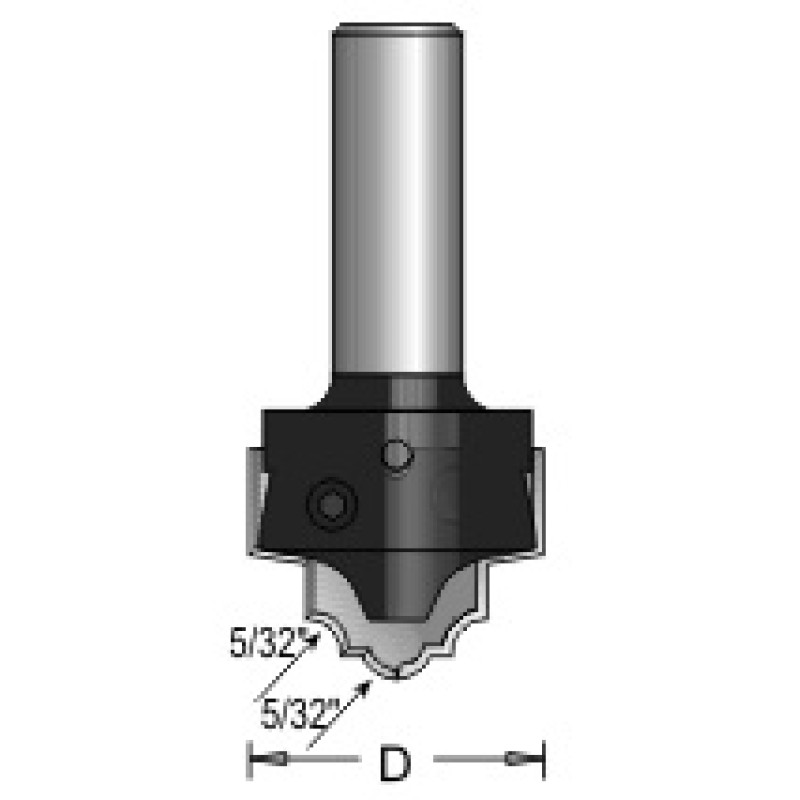

Diameter (D) 1 1/4"
Number of Cutters 2
Shank (d) 1/2"
Radius (R) 5/32"
R1 5/32"
Overall Length (L) 2 5/8"
Technology Carbide Inserts
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood, Composite Material, Plywood
