Home » Drilling & Cutting » Router Bits » Ogee Bits » N8-A14 Classic Panel Bit Type A 2 Flute 3/16" Radius 1/2" Shank A14 Blade

N8-A14 Classic Panel Bit Type A 2 Flute 3/16" Radius 1/2" Shank A14 Blade

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: N8-A14
Price: $133.27CAD $119.94CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

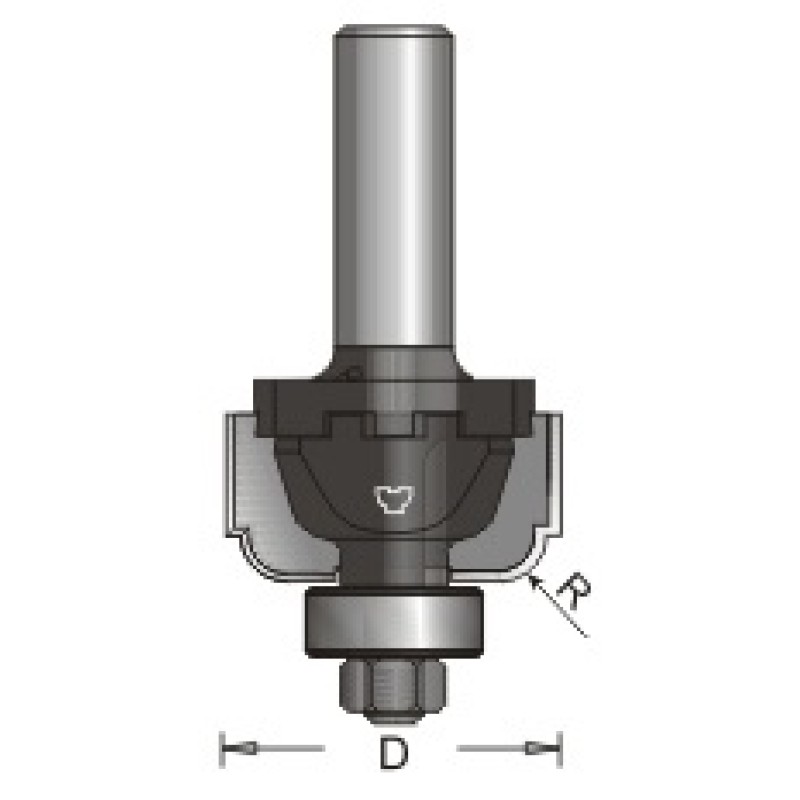

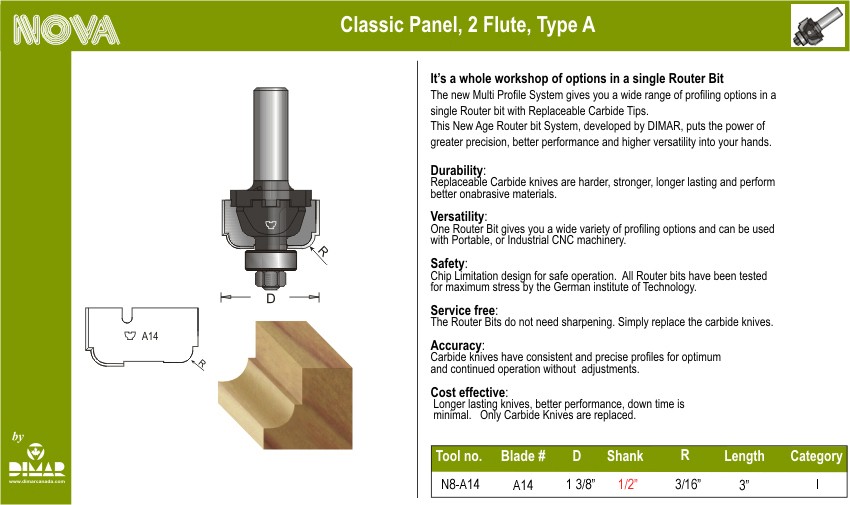

1 3/8" Dia, Carbide Inserts, Flat Ogee Bit, Type A, 2 Flutes, 1/2" Shank, 3" Length

Dimar's carbide inserts Flat Ogee bits consists of two arcs that curve in opposite senses so that the ends are parallel. In architecture, the name is also used for a moulding with an ogee-shaped profile, consisting (going from low to high) of a concave arc flowing into a convex arc, with vertical ends. Some slight variations of the standard ogee are also known as “wavy bits”. A “stepped ogee” is basically an ogee bit with a step-like design at the intersection of the two curves, to give it a detailed design.

  • Two flutes are ideal when fine finishing is a priority.
  • Works on most CNC, Hand-Held, and table routers.
  • Cuts most softwood and hardwood.
Diameter (D) 1 3/8"
Number of Cutters 2
Shank (d) 1/2"
Radius (R) 3/16"
Overall Length (L) 3"
Technology Carbide Inserts
Tools Hand Router, CNC Machine
Material Soft Wood, Hard Wood
