N8-A23 Flat Ogee BIt Type A 2 Flute 5/32" Radius 1/2" Shank A23 Blade

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: N8-A23
Price: $133.27CAD $119.94CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

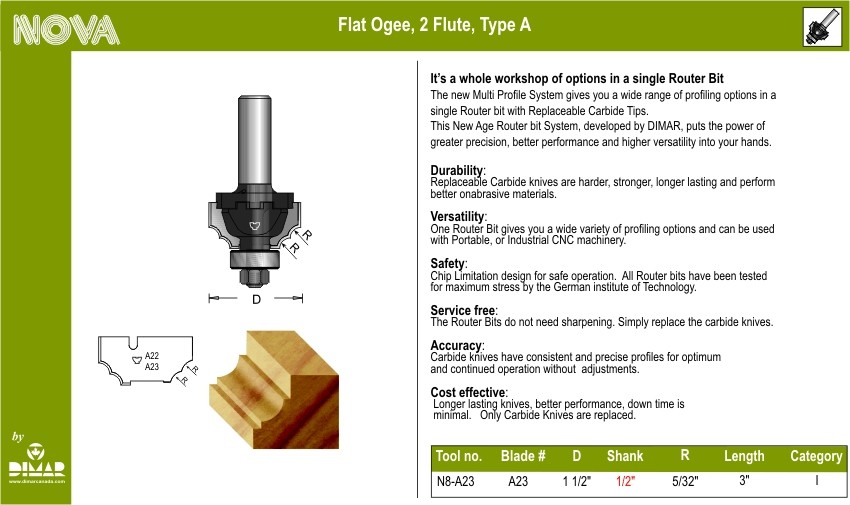

1 1/2" Dia, Carbide Inserts, Flat Ogee, Type A, 2 Flutes, 1/2" Shank, 3" Length

Dimar's carbide inserts Flat Ogee bits consists of two arcs that curve in opposite senses so that the ends are parallel. In architecture, the name is also used for molding with an ogee-shaped profile, consisting (going from low to high) of a concave arc flowing into a convex arc, with vertical ends. Some slight variations of the standard ogee are also known as “wavy bits”. A “stepped ogee” is basically an ogee bit with a step-like design at the intersection of the two curves, to give it a detailed design.

  • Two flutes are ideal when fine finishing is a priority.
  • Works on most CNC, Hand-Held, and table routers.
  • Cuts most softwood and hardwood.

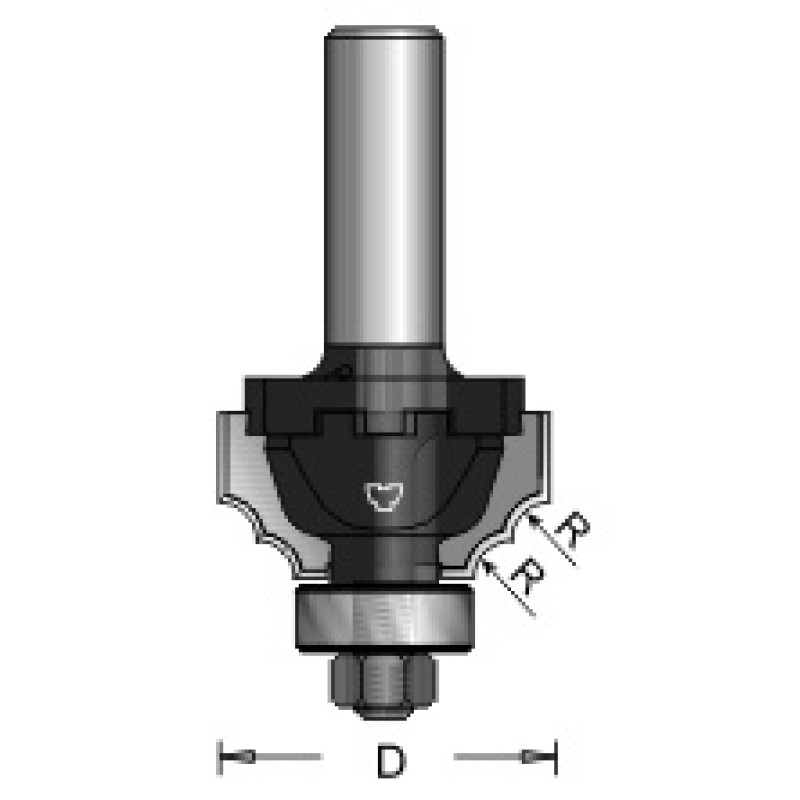

Diameter (D) 1 1/2"
Number of Cutters 2
Shank (d) 1/2"
Radius (R) 5/32"
Overall Length (L) 3"
Technology Carbide Inserts
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood
