Home » Drilling & Cutting » Router Bits » Mortising Bits » MB-20A4 Mortising Bit Assembly 2 Flute 5/8" Cutting Height 1-1/4" Diameter 1/4" Shank

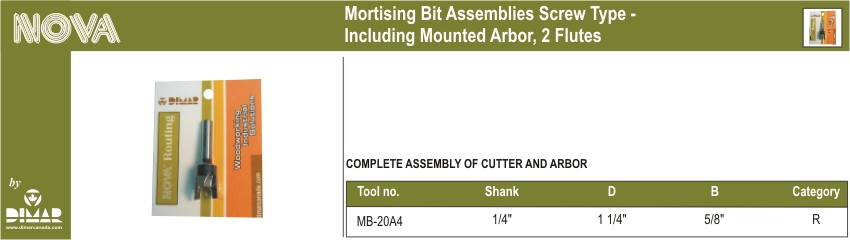

MB-20A4 Mortising Bit Assembly 2 Flute 5/8" Cutting Height 1-1/4" Diameter 1/4" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: MB-20A4
Price: $71.80CAD $64.62CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1 1/4" Dia, Carbide Tipped, Assembled Mortising Bit, 2 Flute, 1/4" Shank, 1 3/4" Length

This double flute carbide-tipped assembled mortising bit is recommended for creating mortises for hinges and locksets. It is used to produce a remarkably clean cut with crisp edges. A suitable mortising bit, as shown, should have a large gullet between the two flutes.

  • Carbide tipped for maximum performance
  • Cuts most composite materials, hardwoods, softwoods, and plywood
  • Can be used on most CNC, hand-held routers, and table-mounted portable routers
Diameter (D) 1 1/4"
Shank (d) 1/4"
L1 1 1/2"
Cutting Length (B) 5/8"
Overall Length (L) 1 3/4"
Number of Cutters 2
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood, Veneers, Composite Material, Plywood
