BC825 Bottom Cleaning Straight Bit 2 Flute 1" Diameter 7/16" Cutting Height 1/2" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: BC825
Price: $67.65CAD $60.89CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1" Dia, Carbide Tipped, Template Bit with Centre Ball Bearing, 2 Flutes, 1/2" Shank, 2 1/2" Length

This ultimate double flute template bit with a central ball bearing is recommended to get greater balance and when finer finish is a priority. This bit was designed for high production work with maximum chip clearance for faster feed rates. The ball bearing guide will ride along with the template, and the carbide teeth will cut into the material at the exact diameter of the bearing, hereby “copying” the design flush with the bearing’s diameter.

  • Perfect for vertical and gradual plunging
  • It cuts most composite materials, plywood, hardwoods, and softwoods
  • Use on hand-held routers, and table-mounted portable routers
  • Radial relief technology-enabled: ensures minimal loss of carbide diameter when sharpening, increases tool life, and saves almost 8x the cost of regular sharpening

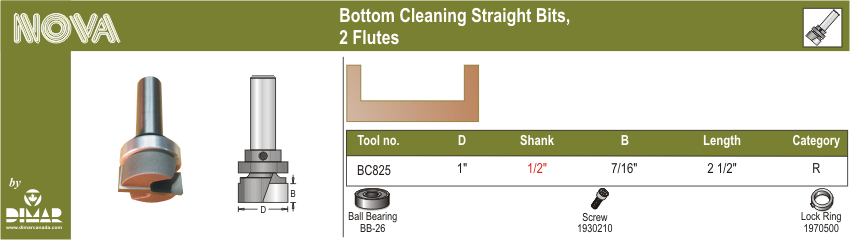

Diameter (D) 1"
Shank (d) 1/2"
Cutting Length (B) 7/16"
Overall Length (L) 2 1/2"
Number of Cutters 2
Technology Carbide Tipped
Tools Hand Router, Table Router
Material Soft Wood, Hard Wood, Composite Material, Plywood
