Home » Drilling & Cutting » Router Bits » Grooving & Straight » T-Slot Bits » 146R6-28 T Slot Bit 2 Flute 5/16" Height 1-3/32" Diameter 3/8" Shank

146R6-28 T Slot Bit 2 Flute 5/16" Height 1-3/32" Diameter 3/8" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 146R6-28
Price: $82.32CAD $74.08CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1 3/32" Dia, Carbide Tipped, Teeth-Slotter Bit, 2 Flutes, 3/8" Shank, 2 3/8" Length

This ultimate T-Slotter bit is recommended for creating T-slot wall panels and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). Plunging operations are not meant for this bit.

  • Carbide-tipped for maximum performance
  • Cuts most composite materials or plywood, hardwood, and softwood
  • Can be used on most CNC and table-mounted portable routers

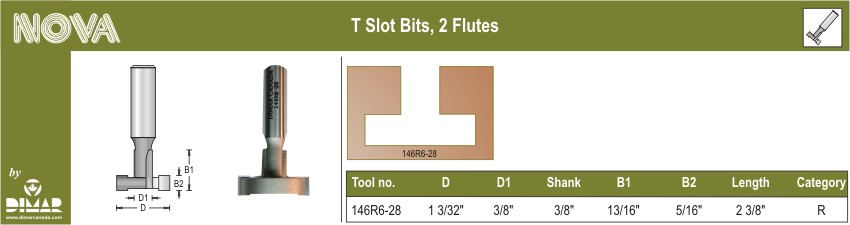

Diameter (D) 1 3/32"
D1 3/8"
Number of Cutters 2
Shank (d) 3/8"
Cutting Length (B) 13/16"
B1 5/16"
Overall Length (L) 2 3/8"
Technology Carbide Tipped
Tools Table Router , CNC Machine
Material Soft Wood, Hard Wood, Composite Material, Plywood
