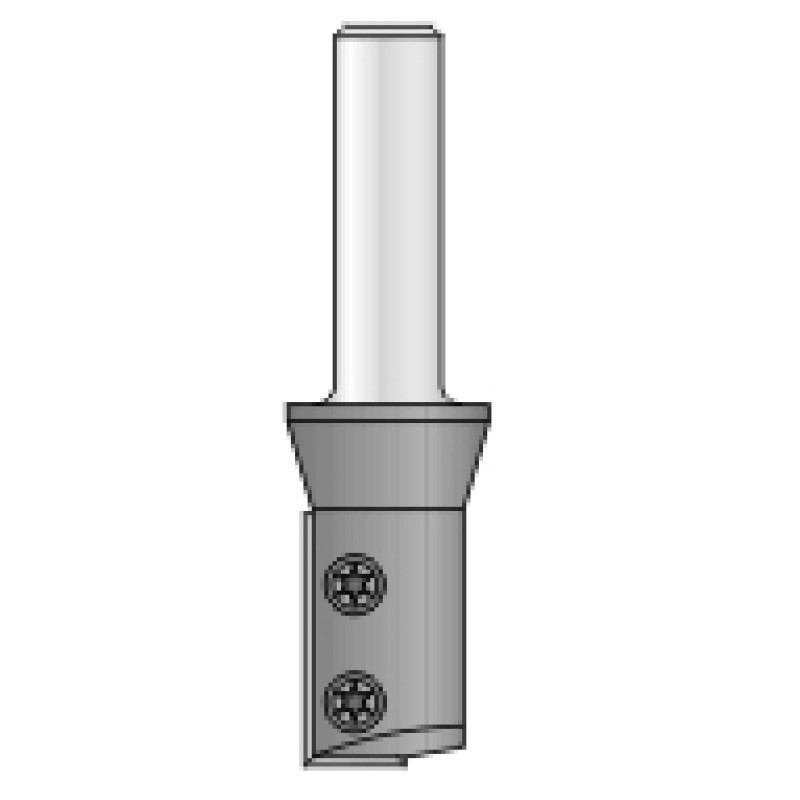

7RL8-16S Straigth Bit Plunge 1 Flute 5/8" Diameter 1-3/16" Length 1.2" Shank L301 Knife

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 7RL8-16S
Price: $178.50CAD $99.95CAD
Location Availability Min Qty
BC Warehouse 2 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

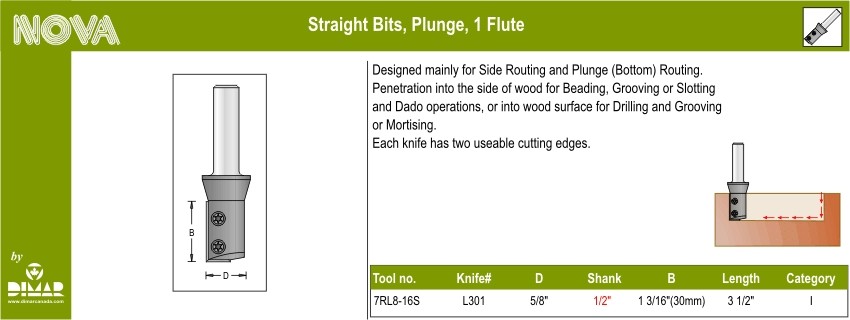

5/8" Dia, Carbide Insert, Straight Bit, 1 Flute, RH, 1/2" Shank, 3 1/2" Length

Dimar's carbide inserts straight bits are designed mainly for Side Routing and Plunge (Bottom) Routing. Penetration into the side of wood for Beading,
Grooving or Slotting and Dado operations, or into wood surface for Drilling and Grooving or Mortising. Each knife has two useable cutting edges.

  • This bit was designed for high production work with maximum chip clearance for fast feed rates.
  • Cuts most hardwoods, and softwoods.
  • Use on CNC, Hand-held routers, and table-mounted portable routers.
  • RH= Right Hand Rotationv
Diameter (D) 5/8"
Shank (d) 1/2"
Cutting Length (B) 1 3/16"
Overall Length (L) 3 1/2"
Rotation Right Hand (RH)
Number of Cutters 1
Technology Carbide Inserts
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood
