Dimar's Slotting Cutter Set Dimar QUADRISET

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: QUADRISET
Price: $156.87CAD $141.18CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1 7/8" Dia, Carbide Tipped, Multipurpose Slotting Cutter, 2 Flutes

This ultimate Quadriset router bit is recommended to cut grooves and dados. Achieving continuous width from 5.7 to 18mm in increments of 0.1mm. Tongue and Groove along wood lengths. For purposes of aligning or cladding. With the right setup, you may get tongue and groove as well. Also, useful for making doors, windows, pictures, etc.

  • Carbide-tipped for maximum performance
  • Cuts most hardwood or softwood
  • Can be used on most table-mounted portable routers

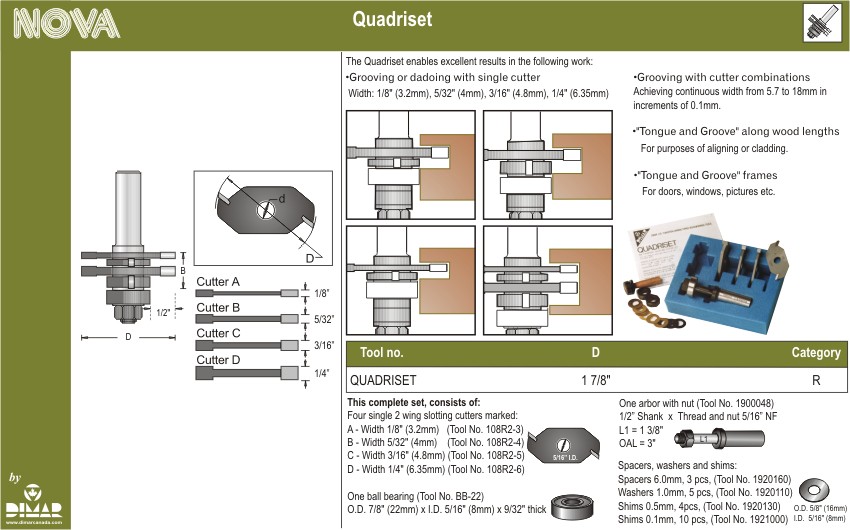

This complete set consists of:

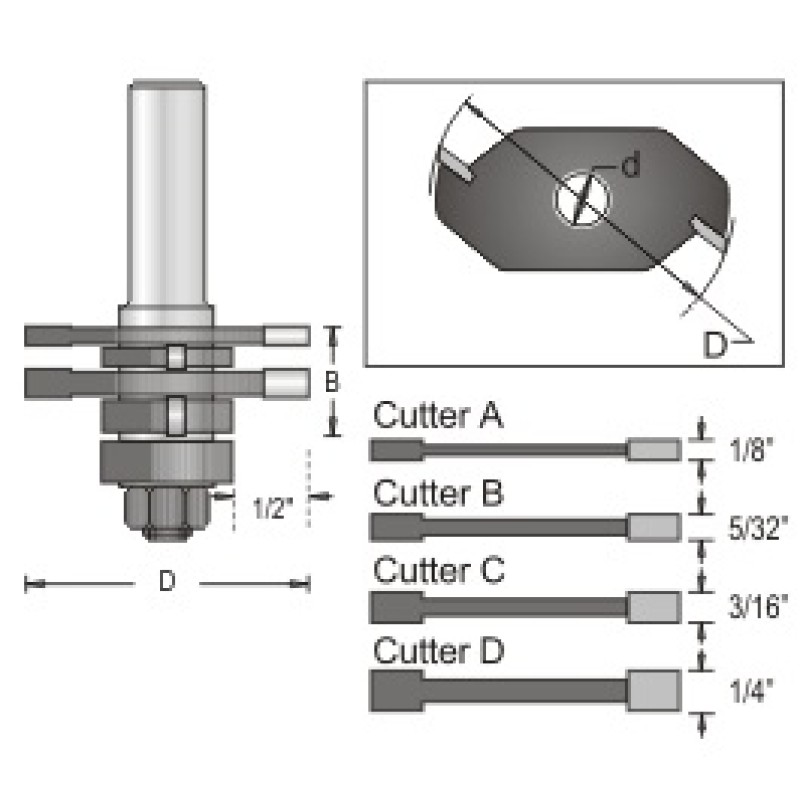

Four single 2 wing slotting cutters marked:
A - Width 1/8” (3.2mm) (Tool No. 108R2-3)
B - Width 5/32” (4mm) (Tool No. 108R2-4)
C - Width 3/16” (4.8mm) (Tool No. 108R2-5)
D - Width 1/4” (6.35mm) (Tool No. 108R2-6)

One arbor with nut (Tool No. 1900048)
1/2” Shank x Thread and nut 5/16” NF
L1 = 1 3/8”
OAL = 3”

One ball bearing (Tool No. BB-22)
O.D. 7/8”(22mm)xI.D. 5/16”(8mm)x 9/32” thick

Spacers, washers, and shims:
Spacers 6.0mm, 3 pcs, (Tool No. 1920160)
Washers 1.0mm, 5 pcs, (Tool No. 1920110)
Shims 0.5mm, 4pcs, (Tool No. 1920130)
Shims 0.1mm, 10 pcs, (Tool No. 1921000)

Number of Cutters 2
Diameter (D) 1 7/8"
Shank (d) 1/2"
Technology Carbide Tipped
Tools Table Router
Material Soft Wood, Hard Wood
