115R6-10 Panel Pilot Bit, 2 Flute, 3/8" Diameter 1" Cutting Length 3/8" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 115R6-10
Price: $51.09CAD $45.98CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

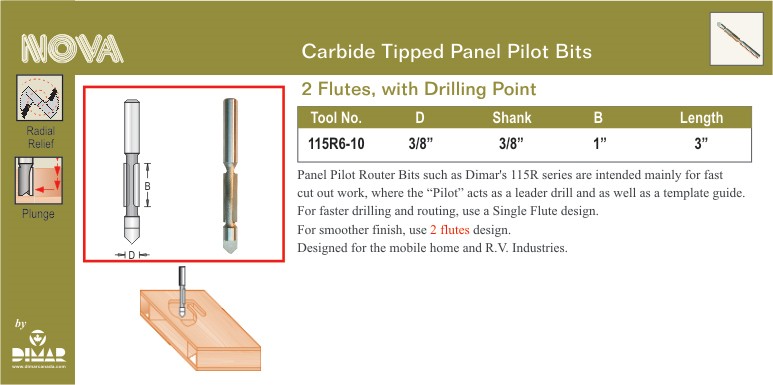

3/8" Dia, Carbide Tipped, Panel Pilot with Drilling Point, 2 Flute, 3/8" Shank, 3" Length

This ultimate carbide-tipped high precision panel pilot bit has a conical tip for plunging into panels and a fundamental solid pilot. The pilot will lead the bit to copy a predesigned pattern, similar to template work. Moreover, this bit is widely used in the mobile home, caravan, trailer, coach, and motor home industries.

  • Perfect for vertical and gradual plunging
  • Cuts most softwood, hardwood, veneers, laminate, and panels
  • For use in hand-held routers
  • Radial relief technology-enabled: ensures minimal loss of carbide diameter when sharpening, increases tool life, and saves almost 8x the cost of regular sharpening
Diameter (D) 3/8"
Shank (d) 3/8"
Cutting Length (B) 1"
Overall Length (L) 3"
Number of Cutters 2
Technology Carbide Tipped
Tools Hand Router
Material Soft Wood, Hard Wood, Veneers, Laminate, Panels
