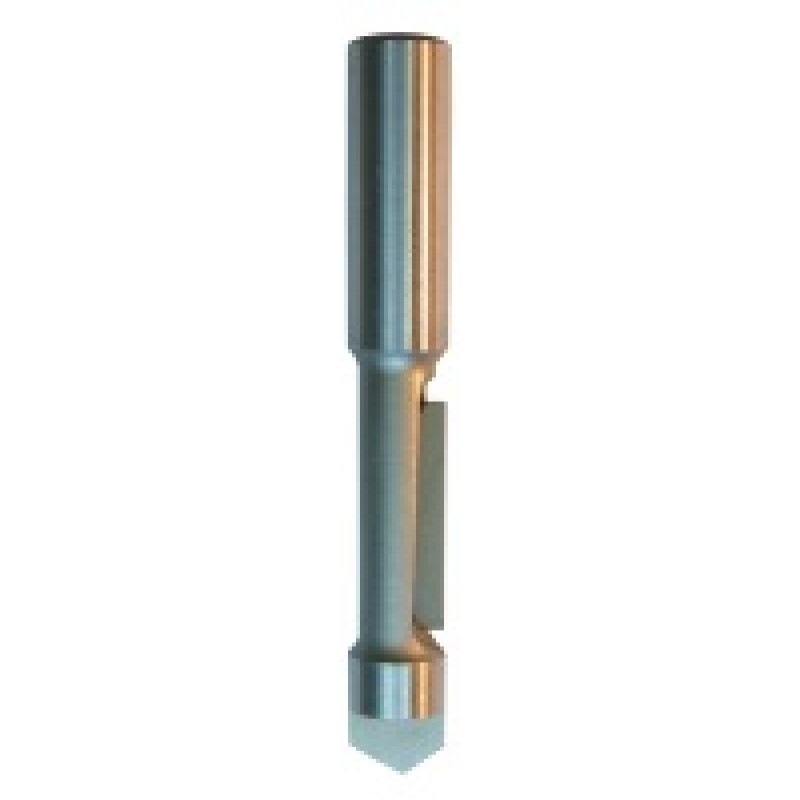

115R8-12S/F Panel Pilot Bit 1 Flute 1/2" Diameter 1-3/16" Cutting Length 1/2" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 115R8-12S/F
Price: $50.68CAD $45.61CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

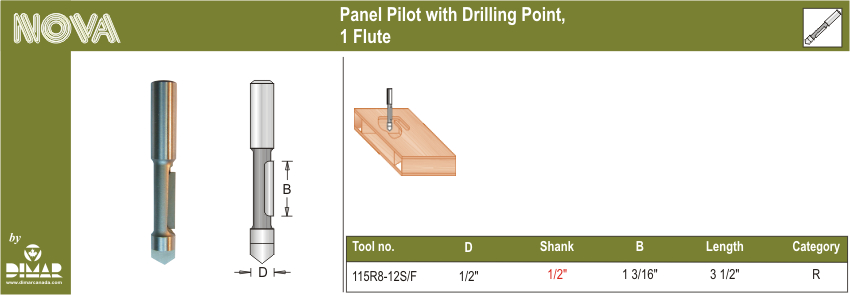

1/2" Dia, Carbide Tipped, Panel Pilot with Drilling Point, 1 Flute, 1/2" Shank, 3 1/2" Length

This ultimate carbide-tipped high precision panel pilot bit has a conical tip for plunging into panels and a fundamental solid pilot. The pilot will lead the bit to copy a predesigned pattern, similar to template work. Moreover, this bit is widely used in the mobile home, caravan, trailer, coach, and motor home industries.

  • Perfect for vertical and gradual plunging
  • Cuts most softwood, hardwood, veneers, laminate, and panels
  • For use in hand-held routers
  • Radial relief technology-enabled: ensures minimal loss of carbide diameter when sharpening, increases tool life, and saves almost 8x the cost of regular sharpening
Diameter (D) 1/2"
Shank (d) 1/2"
Cutting Length (B) 1 3/16"
Overall Length (L) 3 1/2"
Number of Cutters 1
Technology Carbide Tipped
Tools Hand Router
Material Soft Wood, Hard Wood, Veneers, Laminate, Panels
