101RH4-16 Helix Flush Trim Bit 5/8 Diamiter 5/8" Length 1/4" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 101RH4-16
Price: $38.54CAD $34.69CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

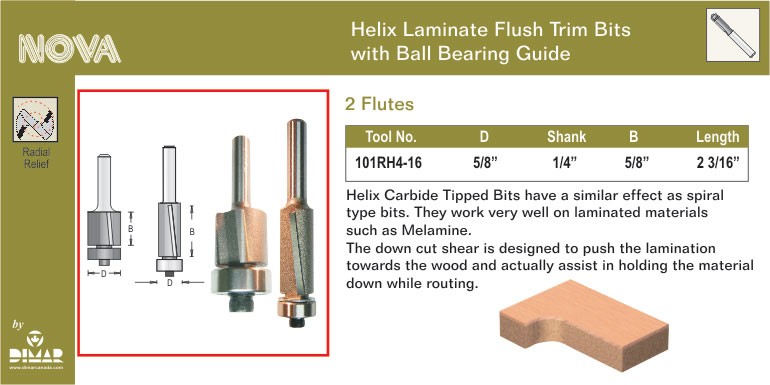

5/8" Dia, Carbide Tipped, Down-Shear Flush Trim Bit with Ball Bearing, 2 Flutes, 1/4" Shank, 2 3/16" Length

This down shear flush-trim bit with ball bearing is recommended for cutting shallow grooves or dados with visible edges giving a remarkable finish. They also have a spiral-like twist to the cutting edges, which makes it easier for cutting certain materials.

  • Cuts most composite materials, hardwoods, softwoods, and plywood
  • Can be used on most hand-held routers, and table-mounted portable routers
  • Radial relief technology-enabled: Ensures minimal loss of carbide diameter when sharpening, increases tool life, and saves almost 8x the cost of regular sharpening
Diameter (D) 5/8"
Shank (d) 1/4"
Cutting Length (B) 5/8"
Overall Length (L) 2 3/16"
Number of Cutters 2
Technology Carbide Tipped
Tools Hand Router, Table Router
Material Soft Wood, Hard Wood, Composite Material, Plywood
