3185032 Engraving Insert Knife Straight 3.2mm Diameter 5mm Height

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 3185032
Price: $45.98CAD $41.39CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

3.2mm Dia, Solid Carbide Insert, Straight, 5mm Cutting Length

Industrial quality inserts knives ensure clean cuts and a longer lifetime than the standard solid router bits. This engraving system was engineered to quickly interchange inserts while mounted in CNC machines to eliminate setup time and to maintain consistent cutting accuracy. Balanced design to minimize vibration and to provide superior cutting results.

Ideal for cutting laminated materials, veneers, MDF, plastics, wood, and solid surfaces.

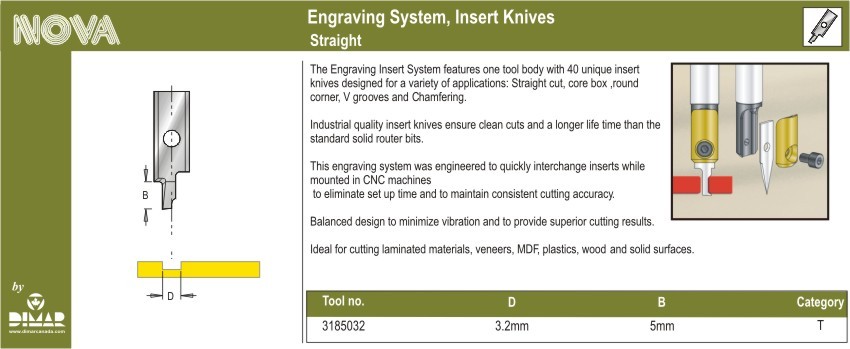

The Engraving Insert System features one tool body with 40 SOLID CARBIDE unique insert knives designed for a variety of applications: Straight cut, core box, round corner, V grooves, and Chamfering.

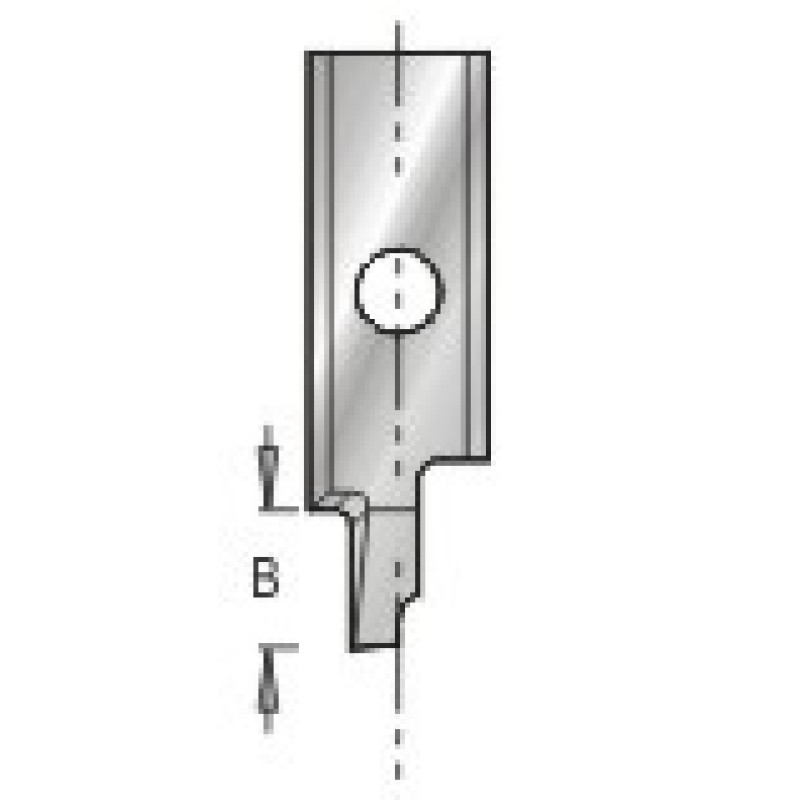

Diameter (D) 3.2mm
Cutting Length (B) 5mm
Technology Solid Carbide
Material Soft Wood, Hard Wood, Veneers, Laminate, Composite Material, Solid Surface, Plastic
