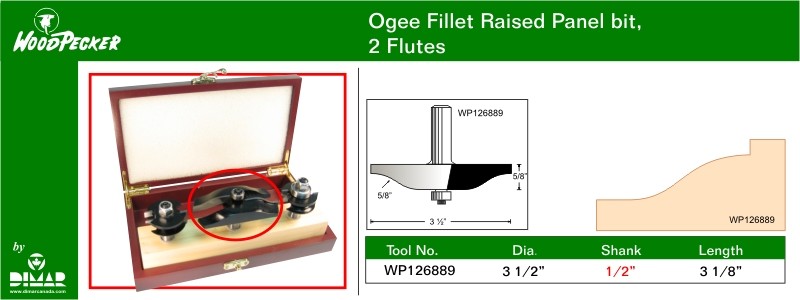

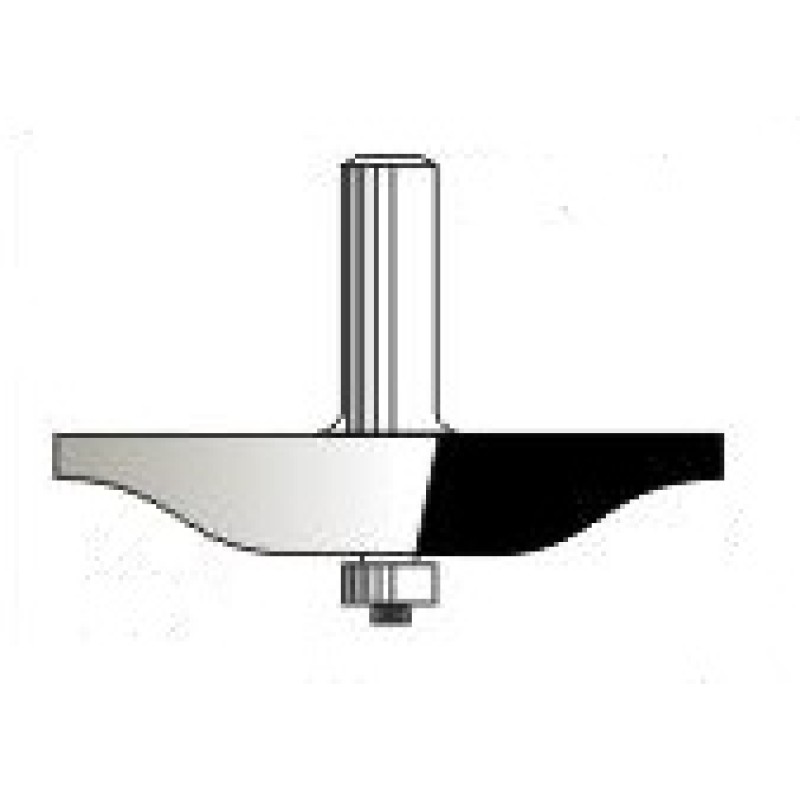

Dimar's Carbide Tipped Ogee Fillet Bits contain a curve, shaped somewhat like an S, consisting of two arcs that curve in opposite senses so that the ends are parallel. In architecture, the name is also used for a molding with an ogee-shaped profile, consisting (going from low to high) of a concave arc flowing into a convex arc, with vertical ends. Some slight variations of the standard ogee are also known as “wavy bits”. A “stepped ogee” is basically an ogee bit with a step-like design at the intersection of the two curves, to give it a detailed design.
| Diameter (D) | 3 1/2" |
|---|---|
| Number of Cutters | 2 |
| Shank (d) | 1/2" |
| Cutting Length (B) | 5/8" |
| Radius (R) | 7/8" |
| Overall Length (L) | 3 1/8" |
| Technology | Carbide Tipped |
| Tools | Palm Router, Hand Router, Table Router |
| Material | Soft Wood, Hard Wood |
