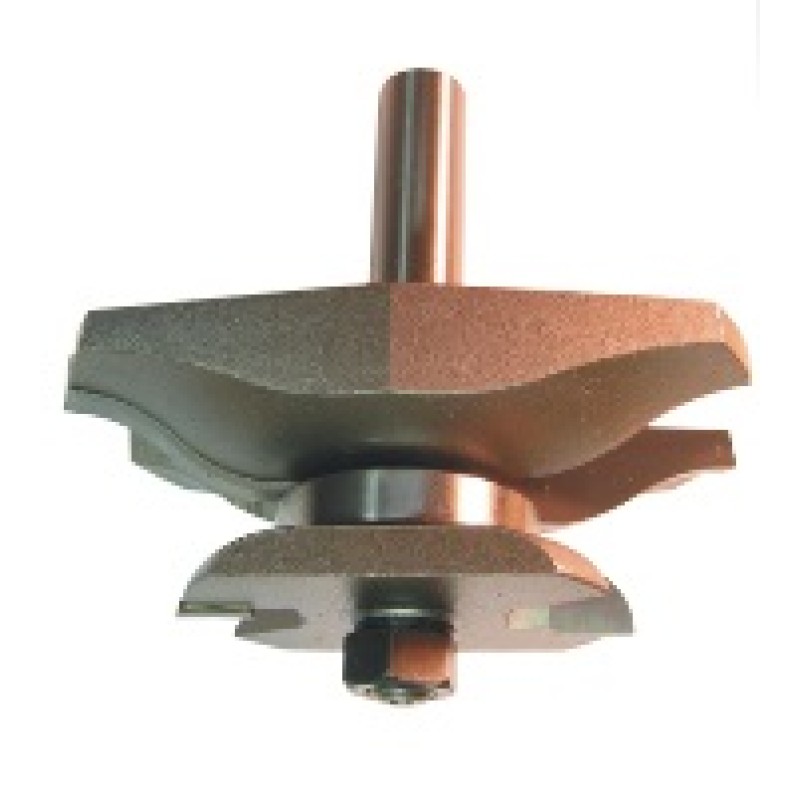

126R8-84BC Ogee Fillet Raised Panel Bit With Back Cutter 2 Flute 1/2" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 126R8-84BC
Price: $320.93CAD $288.83CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

3 3/8" Dia, Carbide Tipped, Ogee Fillet Raised Panel Bit with Back Cutter, 2 Flutes, 1/2" Shank, 3 1/16" Length

This ultimate ogee fillet raised panel with a back cutter is recommended for cutting the inside of a panel. It has two ball bearings which result in a safer two-pass operation.

  • Carbide-tipped for maximum performance
  • Cuts most composite materials, hardwoods, softwoods, and plywood
  • Can be used on most table-mounted portable routers

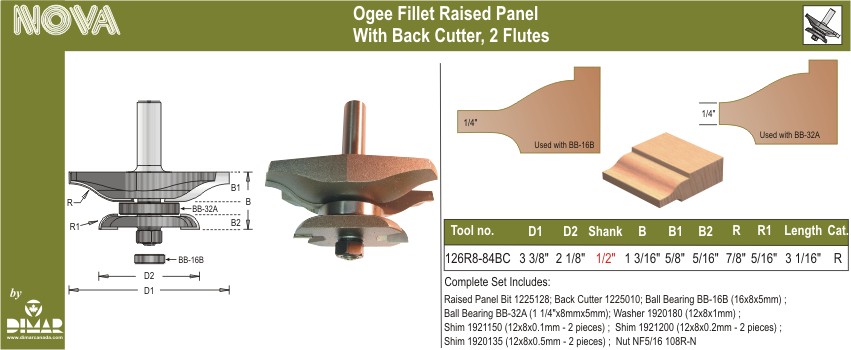

Diameter (D) 3 3/8"
D1 2 1/8"
Number of Cutters 2
Shank (d) 1/2"
Cutting Length (B) 1 3/16"
B1 5/8"
B2 5/16"
Radius (R) 7/8"
R1 5/16"
Overall Length (L) 3 1/16"
Technology Carbide Tipped
Tools Table Router
Material Soft Wood, Hard Wood, Composite Material, Plywood
