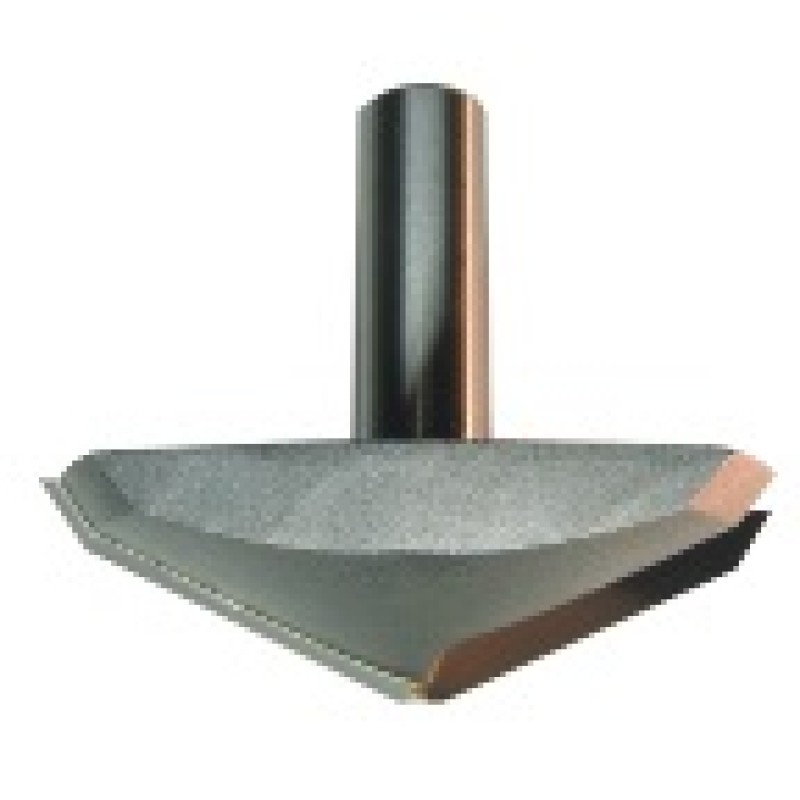

122R8-67 French Provincial Raised Panel Plunge Bit 2 Flute 1/2" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 122R8-67
Price: $189.16CAD $170.24CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

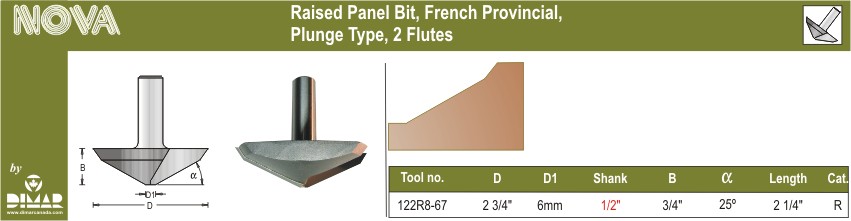

2 3/4" Dia, Carbide Tipped, French Provincial Raised Panel Bit for Plunging, 2 Flutes, 1/2" Shank, 2 1/4" Length

This ultimate french provincial raised panel bit for plunging is recommended for producing beautiful raised panels with a 25-degree bevel for doors and paneling. Alternatively, alter the cut depth to create grooves of any width up to 2 3/4" in diameter.

  • Carbide-tipped for maximum performance
  • Cuts most composite materials, hardwoods, softwoods, and plywood
  • Can be used on most CNC and table-mounted portable routers
Diameter (D) 2 3/4"
D1 6mm
Number of Cutters 2
Shank (d) 1/2"
Cutting Length (B) 3/4"
Degree (a°) 25°
Overall Length (L) 2 1/4"
Technology Carbide Tipped
Tools Table Router , CNC Machine
Material Soft Wood, Hard Wood, Composite Material, Plywood
