Home » Drilling & Cutting » Router Bits » Cabinet Making » Rail & Stile Bits » 150R4-33 2 Piece Rail & Stile Bit 2 Flute 5/8" Cutting Height 1-1/64" Radius 1/4" Shank

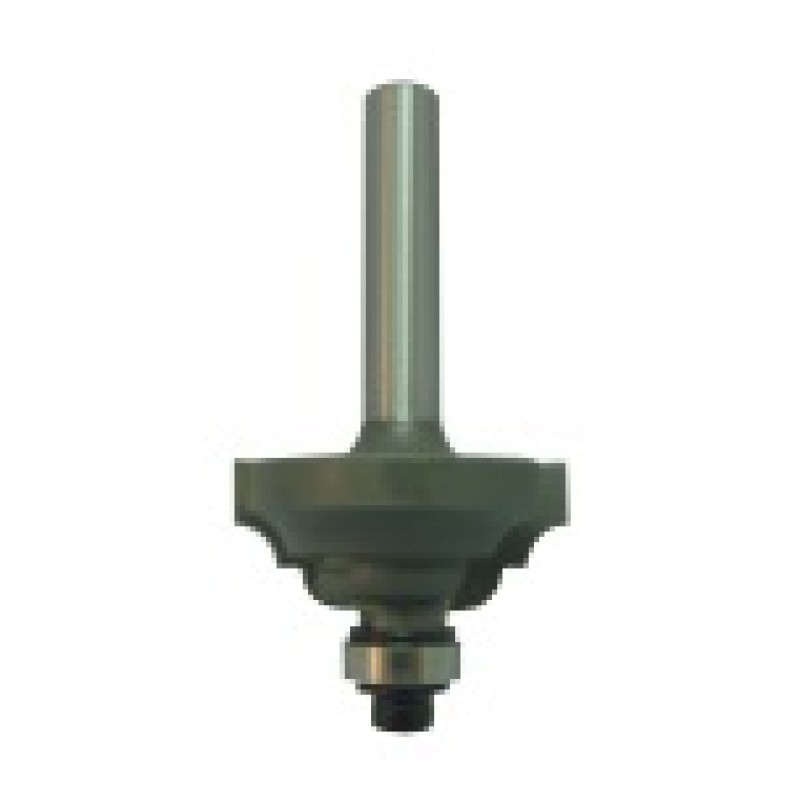

150R4-33 2 Piece Rail & Stile Bit 2 Flute 5/8" Cutting Height 1-1/64" Radius 1/4" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 150R4-33
Price: $153.98CAD $138.58CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1 5/16" Dia, Carbide Tipped, Classical Rail Bit, 2 Flutes, 1/4" Shank, 2" Length

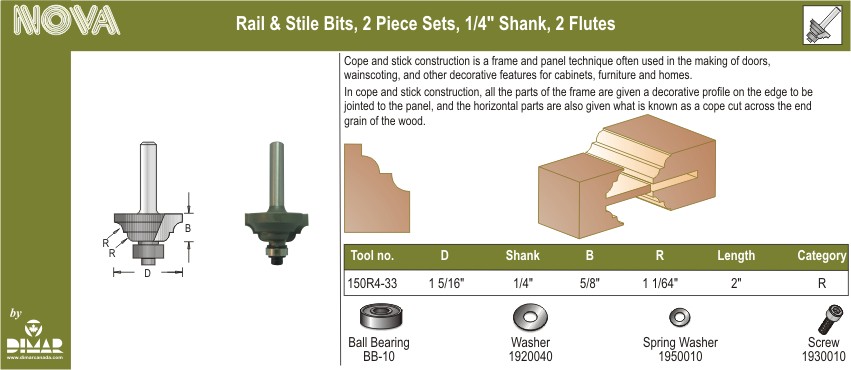

This ultimate rail and stile bit is recommended for creating doors. The stub spindle and cope cutter configuration are used to make unique door-making router bits. A cap screw secures the counterbored cope cutter to the spindle. The ornate ogee "sticking" along the edges of the stiles and rails is shaped with a matching profile bit. The tenon travels over the top of the bit unimpeded since the cope is cut on the ends of the rails.

  • Carbide-tipped for maximum performance
  • Cuts most hardwood and softwood
  • Can be used on most table-mounted portable routers

Diameter (D) 1 5/16"
Number of Cutters 2
Shank (d) 1/4"
Cutting Length (B) 5/8"
Radius (R) 1 1/64"
Overall Length (L) 2"
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood
