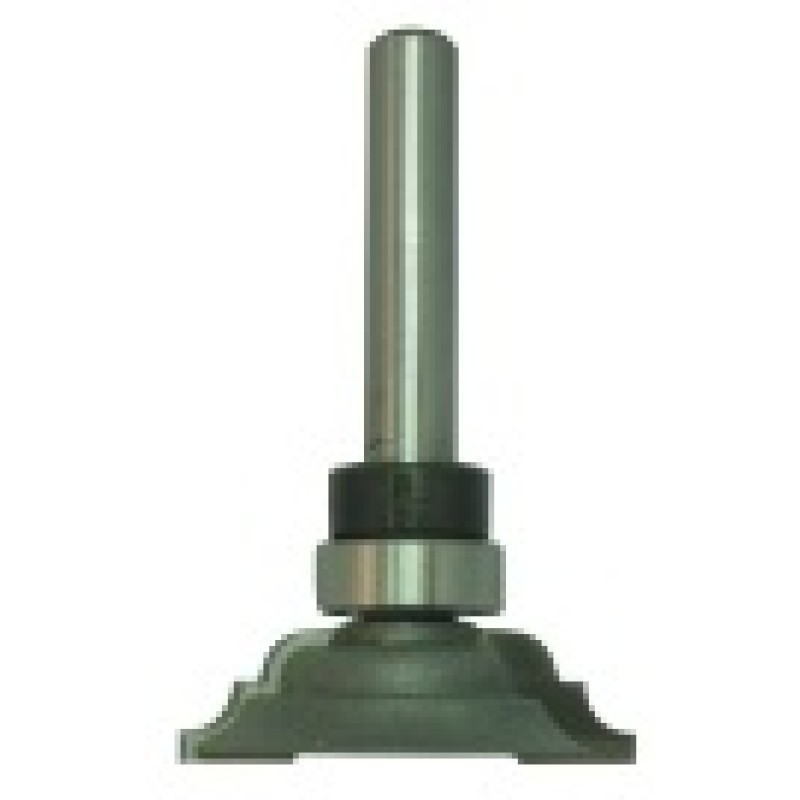

150R4-31 2 Piece Rail & Stile Bit 2 Flute 23/64" & 5/64" Cutting Height 1/4" Shank 9/64" Radius

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 150R4-31
Price: $142.62CAD $128.36CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1 13/64" Dia, Carbide Tipped, Classical Rail Bit, 2 Flutes, 1/4" Shank, 2" Length

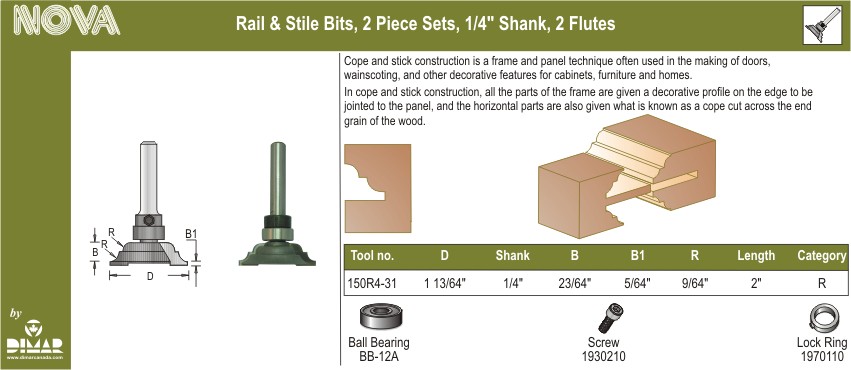

This ultimate rail and stile bit is recommended for creating doors. The stub spindle and cope cutter configuration are used to make unique door-making router bits. A cap screw secures the counterbored cope cutter to the spindle. The ornate ogee "sticking" along the edges of the stiles and rails is shaped with a matching profile bit. The tenon travels over the top of the bit unimpeded since the cope is cut on the ends of the rails.

  • Carbide-tipped for maximum performance
  • Cuts most hardwood and softwood
  • Can be used on most table-mounted portable routers
Diameter (D) 1 13/64"
Number of Cutters 2
Shank (d) 1/4"
Cutting Length (B) 23/64"
B1 5/64"
Radius (R) 9/64"
Overall Length (L) 2"
Technology Carbide Tipped
Tools Table Router
Material Soft Wood, Hard Wood
