Home » Drilling & Cutting » Router Bits » Cabinet Making » Rail & Stile Bits » 242R8-40-3 2 Piece Rail & Stile Bits 2 Flute 1/4" Cutting Height 1/2" Shank

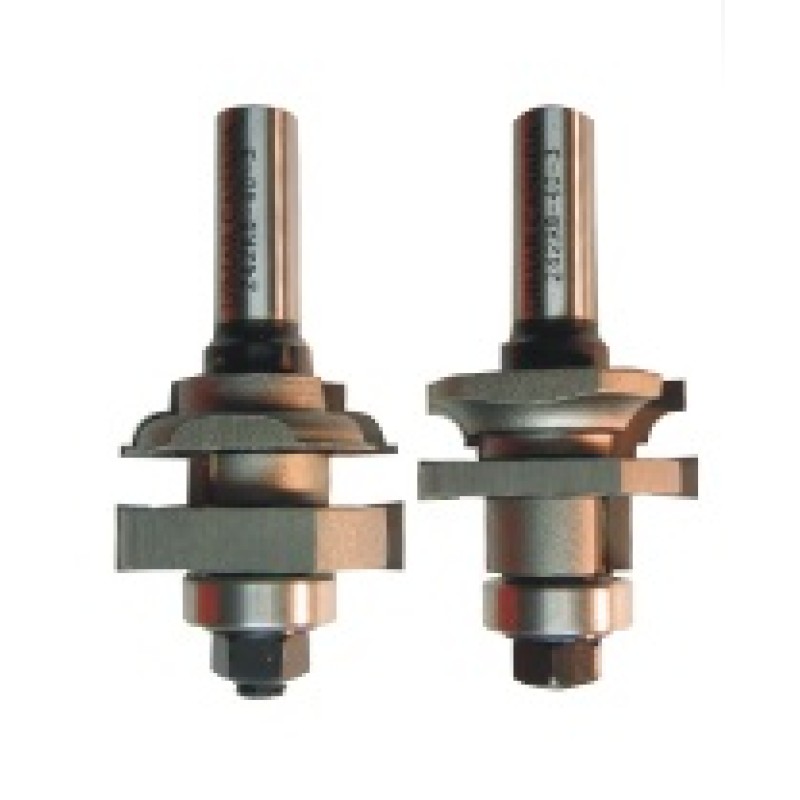

242R8-40-3 2 Piece Rail & Stile Bits 2 Flute 1/4" Cutting Height 1/2" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 242R8-40-3
Price: $279.46CAD $251.52CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

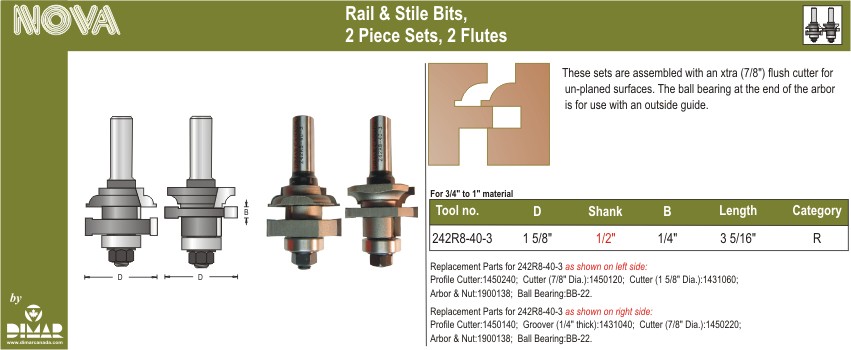

1 5/8" Dia, Carbide Tipped, Round Over Bead Rail & Stile Bit, 2 Flutes, 1/2" Shank, 3 5/16" Length

2 Piece Stile and Rail Set for 3/4" - 1" Material

This ultimate rail and stile set is recommended for furniture and architectural purposes, making cabinet doors and various frame-and-panel combinations. Our stile and rail sets come with two pieces, one for rail cuts and the other for stile cuts.

  • Carbide-tipped for maximum performance
  • Cuts most hardwood and softwood
  • Can be used on most table-mounted portable routers
Diameter (D) 1 5/8"
Number of Cutters 2
Shank (d) 1/2"
Cutting Length (B) 1/4"
Overall Length (L) 3 5/16"
Technology Carbide Tipped
Tools Table Router
Material Soft Wood, Hard Wood
