Home » Drilling & Cutting » Router Bits » Cabinet Making » Panel Bits » 138RS4-38 Panelling Bit 2 Flute 11/16" Cutting Height 1/4 & 3/16" Radius 1/4" Shank

138RS4-38 Panelling Bit 2 Flute 11/16" Cutting Height 1/4 & 3/16" Radius 1/4" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 138RS4-38
Price: $87.55CAD $78.80CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

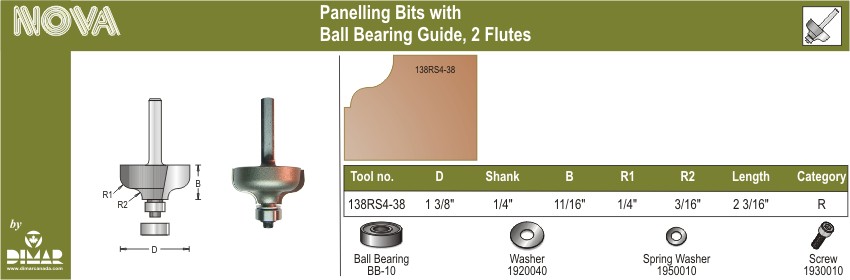

1 3/8" Dia, Carbide Tipped, Paneling Bit with Ball Bearing, 2 Flutes, 1/4" Shank, 2 3/16" Length

This ultimate paneling bit with a ball bearing guide is recommended for creating moldings and decorative profiles. The tool creates a profile of an S-shaped curve when a concave curve is created at the top and the convex curve at the bottom. Also, using the optional ball-bearing produces a profile with a fillet at the convex end of the curve.

  • Carbide-tipped for maximum performance
  • Cuts most hardwoods and softwoods
  • Can be used on most hand-held routers and table-mounted portable routers
Diameter (D) 1 3/8"
Number of Cutters 2
Shank (d) 1/4"
Cutting Length (B) 11/16"
Radius (R) 1/4"
R1 3/16"
Overall Length (L) 2 3/16"
Technology Carbide Tipped
Tools Hand Router, Table Router
Material Soft Wood, Hard Wood
