Home » Drilling & Cutting » Router Bits » Bevel / Chamfer Bits » 102RBH4-12 Bevel Trim Bit Down Shear 2 Flute 1/2" Cutting Height 1/4" Shank 8° Angle

102RBH4-12 Bevel Trim Bit Down Shear 2 Flute 1/2" Cutting Height 1/4" Shank 8° Angle

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 102RBH4-12
Price: $48.61CAD $43.75CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

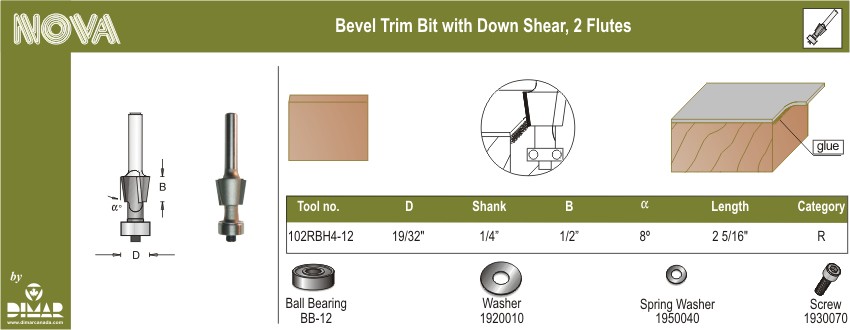

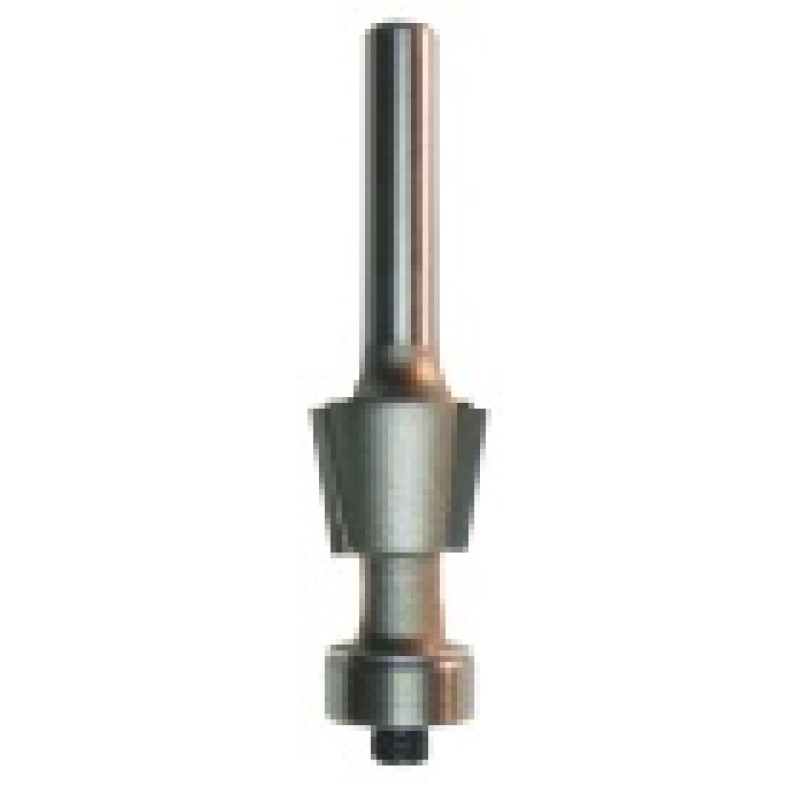

19/32" Dia, Carbide Tipped, Down-Shear Bevel Trim Bit with Ball Bearing, 2 Flutes, 1/4" Shank, 2 5/16" Length

This bevel trim bit with down shear is recommended for cutting shallow grooves or dados with visible edges. They also have a spiral-like twist to the cutting edges, which makes it easier for cutting certain materials. Also, used for smooth trimming on the heavily glued area.

  • Carbide-tipped for maximum performance
  • Cuts most composite materials, hardwoods, softwoods, and plywood
  • Can be used on most hand-held routers and table-mounted portable routers
Diameter (D) 19/32"
Number of Cutters 2
Shank (d) 1/4"
Cutting Length (B) 1/2"
Degree (a°) 8°
Overall Length (L) 2 5/16"
Technology Carbide Tipped
Tools Hand Router, Table Router
Material Soft Wood, Hard Wood, Composite Material, Plywood
