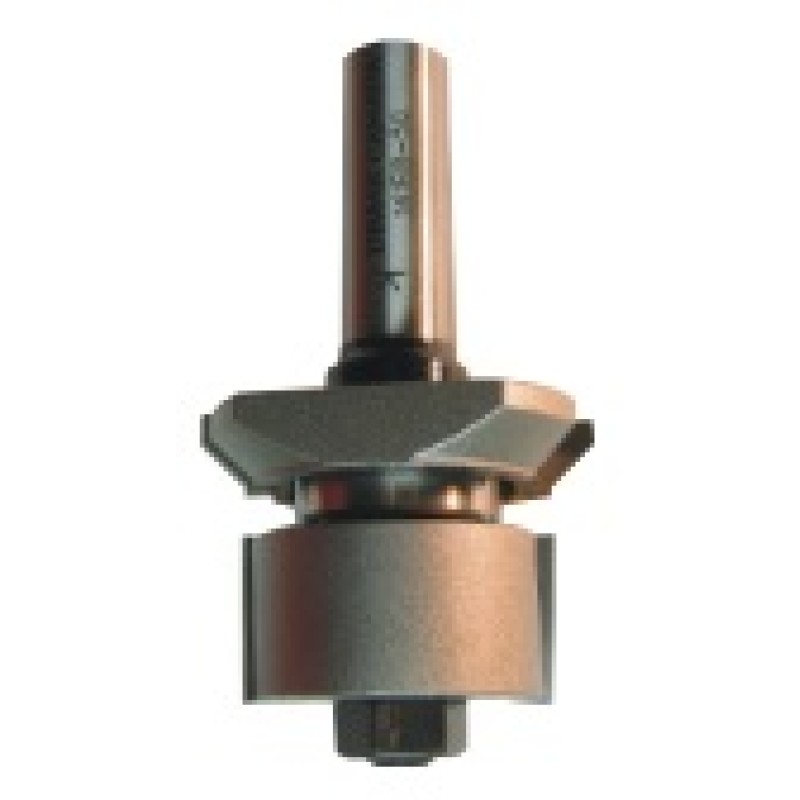

141R8-50 45º Angle "V" Panel Bit Set 1/2" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 141R8-50
Price: $266.72CAD $240.04CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1 13/16" Dia, Carbide Tipped, Tongue & Groove Bevel Bit Set, 2 Flutes, 1/2" Shank, 3" Length



Dimar's Carbide Tipped Tongue & Groove Bevel Bit sets are perfect for fitting similar objects together, edge to edge, used mainly with wood: flooring, parquetry, panelling, and similar constructions. Tongue and groove joints allow two flat pieces to be joined strongly together to make a single flat surface. Before plywood became common, tongue and groove boards were also used for sheathing buildings and to construct concrete formwork.

A strong joint, the tongue and groove joint is widely used for re-entrant angles. The effect of wood shrinkage is concealed when the joint is beaded or otherwise moulded.

  • Two flutes are ideal when fine finishing is a priority.
  • Cuts most hardwoods and softwoods.
  • Use on CNC, hand-held routers and table-mounted portable routers.

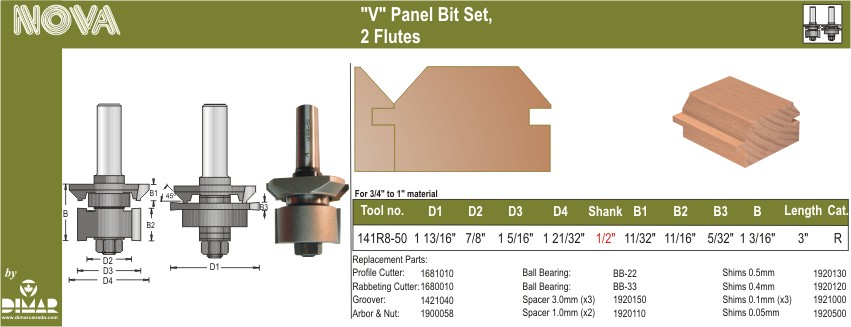

Number of Cutters 2
Diameter (D) 1 13/16"
D1 7/8"
D2 1 5/16"
D3 1 21/32"
D4 1 21/32"
Shank (d) 1/2"
Cutting Length (B) 1 3/16"
B1 11/32"
B2 11/16"
B3 5/32"
Overall Length (L) 3"
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood
