Home » Drilling & Cutting » Router Bits » Joinery » Jointing Bits » 173R4-36 Ovolo Sash Bar Joint Bit 2 Flute 15/32" & 3/8" Cutting Height 11/32" Radius 1/4" Shank

173R4-36 Ovolo Sash Bar Joint Bit 2 Flute 15/32" & 3/8" Cutting Height 11/32" Radius 1/4" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 173R4-36
Price: $166.98CAD $150.28CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

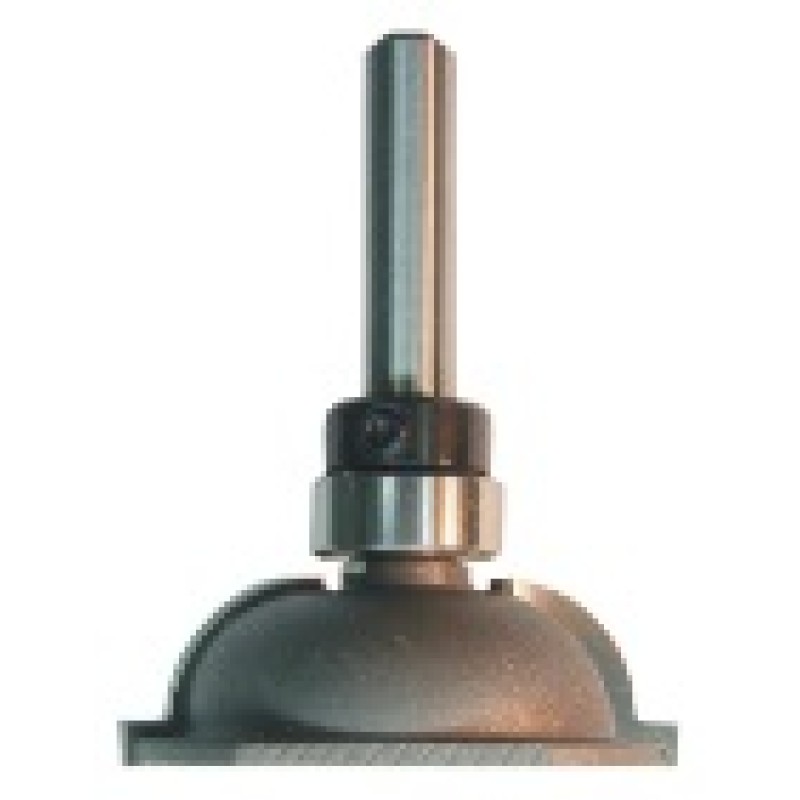

1 7/16" Dia, Carbide Tipped, Sash Bar Joint Bit, 2 Flutes, 1/4" Shank, 1 7/8" Length

This ultimate sash bar joint bit is recommended for creating true divided light doors for fine furniture and cabinets, sash bar windows, and rail and stile constructions.

  • Carbide-tipped for maximum performance
  • Cuts most hardwood or softwood
  • Can be used on most table-mounted portable routers

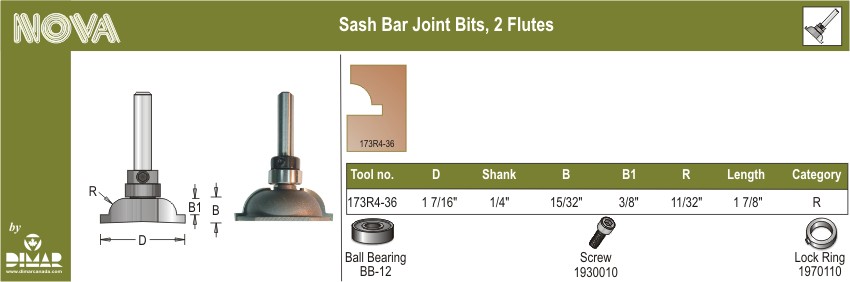

Diameter (D) 1 7/16"
Number of Cutters 2
Shank (d) 1/4"
Cutting Length (B) 15/32"
B1 3/8"
Radius (R) 11/32"
Overall Length (L) 1 7/8"
Technology Carbide Tipped
Tools Table Router
Material Soft Wood, Hard Wood
