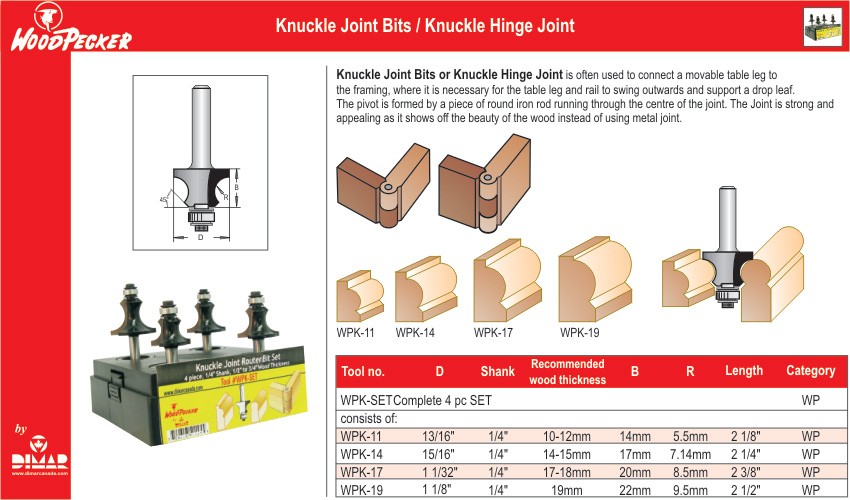

WoodPecker's Knuckle Joint Bits or Knuckle Hinge Joint is often used to connect a movable table leg to the framing, where it is necessary for the table leg and rail to swing outwards and support a drop leaf. The Pivot is formed by a piece of the round iron rod running through the centre of the joint. The Joint is strong and appealing as it shows off the beauty of the wood instead of using the metal joint.

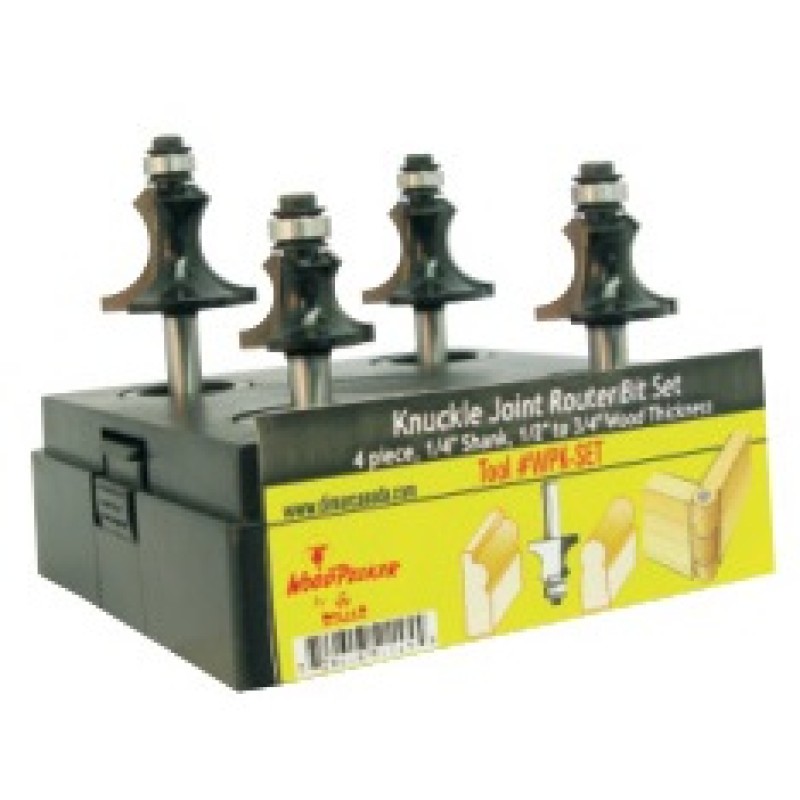

This set includes:
WPK11: 13/16" Dia, Knuckle Bit, 1/4" Shank, 10-12mm Recommended Wood Thickness, 14mm Cutting Length, 5.5mm Radius, 2 1/8" Length
WPK12: 15/16" Dia, Knuckle Bit, 1/4" Shank, 14-15mm Recommended Wood Thickness, 17mm Cutting Length, 7.14mm Radius, 2 1/4" Length
WPK13: 1 1/32" Dia, Knuckle Bit, 1/4" Shank, 17-18mm Recommended Wood Thickness, 20mm Cutting Length, 8.5mm Radius, 2 3/8" Length
WPK14: 1 1/8" Dia, Knuckle Bit, 1/4" Shank, 19mm Recommended Wood Thickness, 22mm Cutting Length, 9.5mm Radius, 2 1/2" Length
| Shank (d) | 1/4" |
|---|---|
| Technology | Carbide Tipped |
| Tools | Hand Router, Table Router , CNC Machine |
| Material | Soft Wood, Hard Wood |
