104R4-7.5 Dovetail Bit Right Hand Rotation 2 Flute 5/16" Cutting Height 1/4" Diameter 1/4" Shank 7.5° Angle

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 104R4-7.5
Price: $37.96CAD $34.16CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1/4" Dia, Carbide Tipped, Dovetail Bit, 2 Flutes, RH, 1/4" Shank, 2 1/2" Length

This ultimate dovetail bit with right-hand rotation is recommended for creating beautiful drawers, boxes, and exposed furniture joints.

  • Carbide-tipped for maximum performance
  • Cuts most composite materials, hardwoods, softwoods, and plywood
  • Can be used on most hand-held routers and table-mounted portable routers

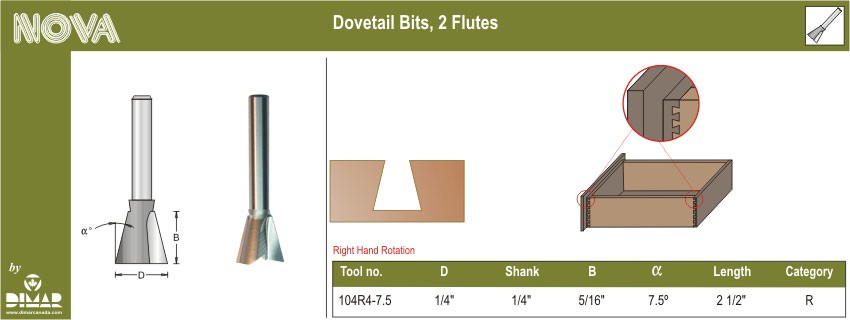

Number of Cutters 2
Diameter (D) 1/4"
Shank (d) 1/4"
Cutting Length (B) 5/16"
Degree (a°) 7.5°
Overall Length (L) 2 1/2"
Rotation Right Hand (RH)
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood, Composite Material, Plywood
