104R8-16-7BL Dovetail Bit Left Hand Rotation 2 Flute 7/8" Cutting Height 5/8" Diameter 1/2" Shank 7° Angle

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 104R8-16-7BL
Price: $106.93CAD $96.23CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

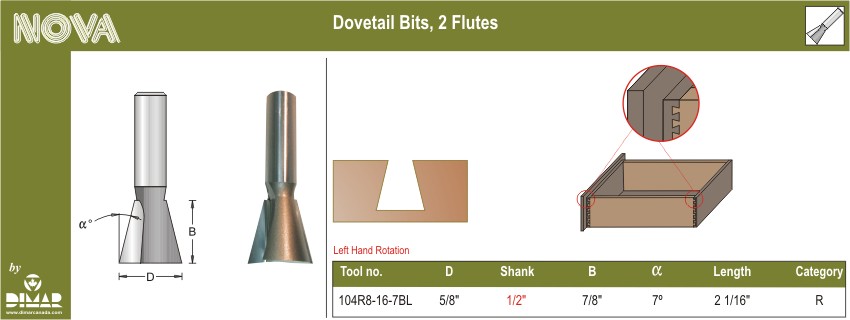

5/8" Dia, Carbide Tipped, Dovetail Bit, 2 Flutes, LH, 1/2" Shank, 2 1/16" Length

This ultimate dovetail bit with left-hand rotation is recommended for creating beautiful drawers, boxes, and exposed furniture joints.

  • Carbide-tipped for maximum performance
  • Cuts most composite materials, hardwoods, softwoods, and plywood
  • Can be used on most hand-held routers and table-mounted portable routers
Number of Cutters 2
Diameter (D) 5/8"
Shank (d) 1/2"
Cutting Length (B) 7/8"
Degree (a°) 7°
Overall Length (L) 2 1/16"
Rotation Left Hand (LH)
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood, Composite Material, Plywood
