Home » Drilling & Cutting » Router Bits » Joinery » Dovetail Bits » 104R8-22-14 Dovetail BIt Spline Glue Joint Bit 2 Flute 7/8" Cutting Height 7/8" Diameter 1/2" Shank 14° Angle

104R8-22-14 Dovetail BIt Spline Glue Joint Bit 2 Flute 7/8" Cutting Height 7/8" Diameter 1/2" Shank 14° Angle

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 104R8-22-14
Price: $58.15CAD $52.33CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

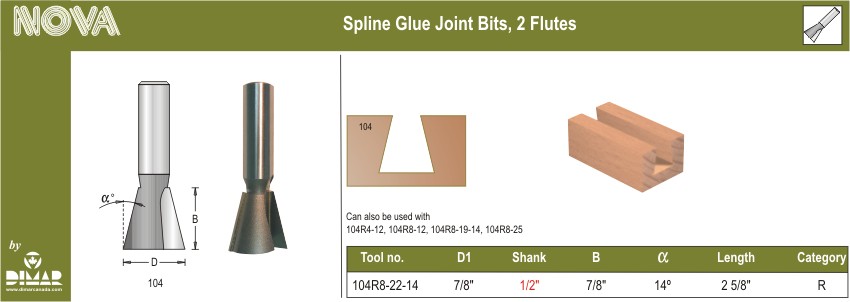

7/8" Dia, Carbide Tipped, Spline Glue Joint Bit, 2 Flutes, 1/2" Shank, 2 5/8" Length

This ultimate dovetail bit with right-hand rotation is recommended for creating beautiful designs on solid surfaces.

  • Carbide-tipped for maximum performance
  • Cuts most solid surfaces
  • Can be used on most CNC, hand-held routers, and table-mounted portable routers
Number of Cutters 2
Diameter (D) 7/8"
Shank (d) 1/2"
Cutting Length (B) 7/8"
Degree (a°) 14°
Overall Length (L) 2 5/8"
Rotation Right Hand (RH)
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Solid Surface
