Home » Drilling & Cutting » Router Bits » Joinery » Dovetail Bits » 104R4-12SP Dovetail Bit 17/32" Cutting Height 9/16" & 1/2" Diameter 1/4" Shank 13° Angle

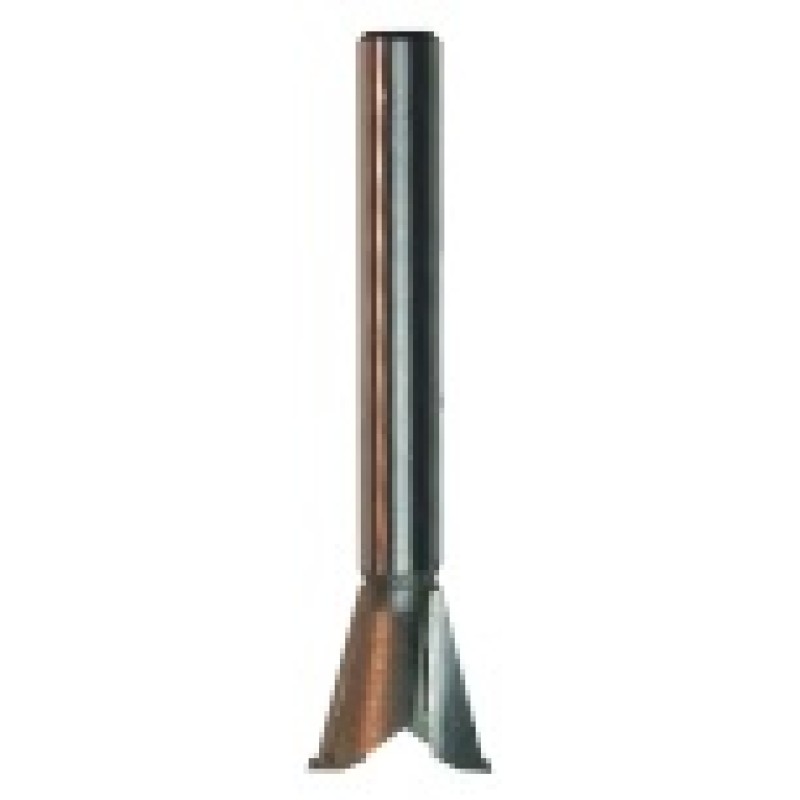

104R4-12SP Dovetail Bit 17/32" Cutting Height 9/16" & 1/2" Diameter 1/4" Shank 13° Angle

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 104R4-12SP
Price: $39.26CAD $35.34CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

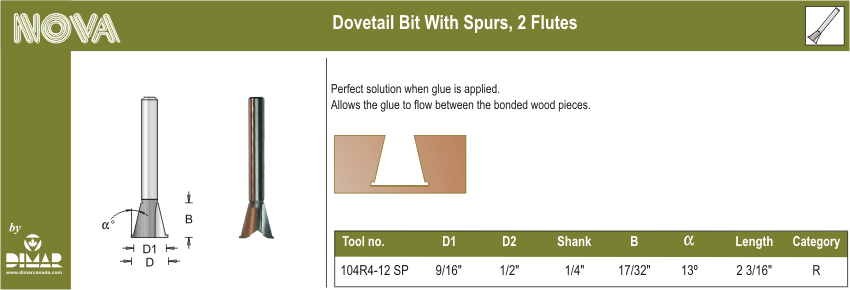

9/16" Dia, Carbide Tipped, Dovetail Bit with Spurs, 2 Flutes, 1/4" Shank, 2 3/16" Length

Dimar's Carbide Tipped Dovetail bits are commonly used to join for example the sides of a drawer to the front of the panels of a box. A series of pins cut to extend from the end of one board interlock with a series of tails cut into the end of another board. The pins and tails have a trapezoidal shape. Once glued, a wooden dovetail joint requires no mechanical fasteners.

  • Two Flutes are ideal when fine finishing is a priority.
  • Cuts most softwood and hardwood.
  • Works on CNC, Hand-Held, Tabel router machines.
Number of Cutters 2
Diameter (D) 9/16"
D1 1/2"
Shank (d) 1/4"
Cutting Length (B) 17/32"
Degree (a°) 13°
Overall Length (L) 2 3/16"
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood
