GD-SET Divided Light Door Router Bit Set 2 Flute

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: GD-SET
Price: $141.08CAD $126.97CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

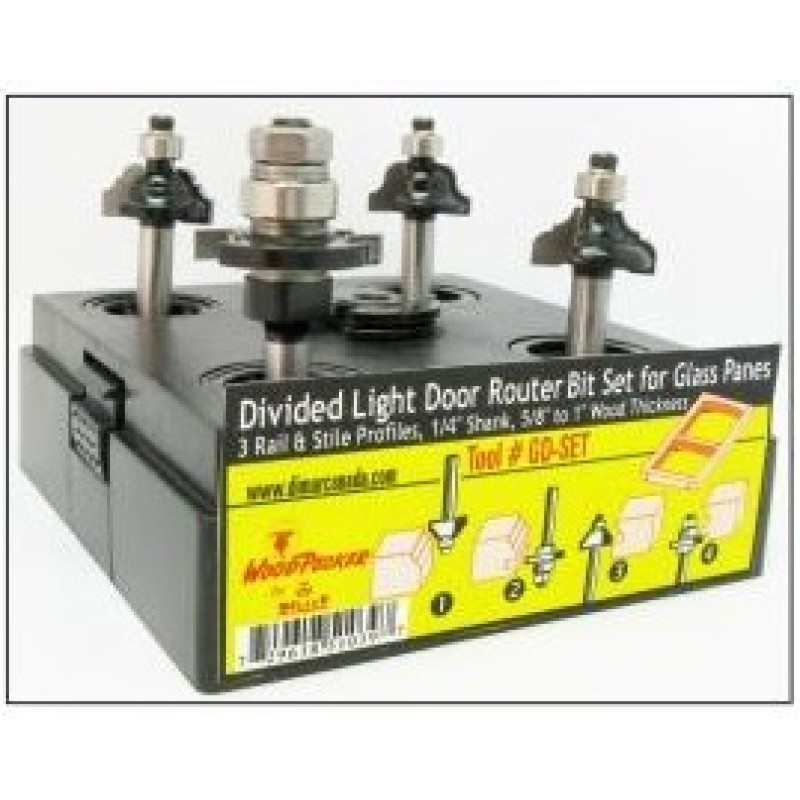

Carbide Tipped, Divided Light Door Router Bit Set, 2 Flutes

WoodPecker's Divided Light Door Router Bit Set is designed to create stunning glass doors with classic style for glass panes. Each set includes 3 different elegant profiles to produce perfectly matched Rail & Stile and Muntins.  The bits cut all composition materials. Each set contains three actual woodcuts of the included profile, so you may decide which profile suits your design beforehand.

  • The adaptable groove thickness will accommodate a glass thickness of 2mm, 3mm, 4mm, 5mm, and 6mm.
  • The recommended wood thickness is 3/4", however, the set will work well for woods 5/8 to 1" thick.
  • Use on table-mounted portable router machines.

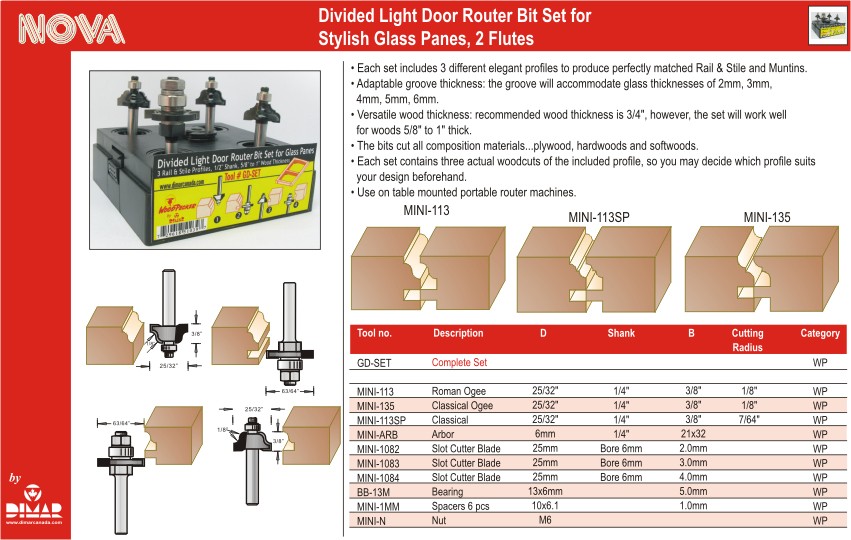

This set includes:

MINI-113: 25/32" Dia, Carbide Tipped, Roman Ogee, 1/4" Shank, 3/8" Cutting Length, 1/8" Cutting Radius

MINI-135: 25/32" Dia, Carbide Tipped, Classical Ogee, 1/4" Shank, 3/8" Cutting Length, 1/8" Cutting Radius

MINI-113SP: 25/32" Dia, Carbide Tipped, Classical, 1/4" Shank, 3/8" Cutting Length, 7/64" Cutting Radius

MINI-ARB: 6mm Dia, Arbor, 1/4" Shank, 21X32 Length

MINI-1082: 25mm Dia, Slot Cutter Blade, 6mm Bore, 2mm Cutting Length

MINI-1083: 25mm Dia, Slot Cutter Blade, 6mm Bore, 3mm Cutting Length

MINI-1084: 25mm Dia, Slot Cutter Blade, 6mm Bore, 4mm Cutting Length

BB13M: 13X6mm Dia, Bearing, 5mm Length

MINI-1MM: 10X6.1 Dia, Spacers 6 pcs, 1mm Length

MINI-N: M6 Dia Nut

Number of Cutters 2
Technology Carbide Tipped
Tools Table Router
Material Soft Wood, Hard Wood, Plywood
