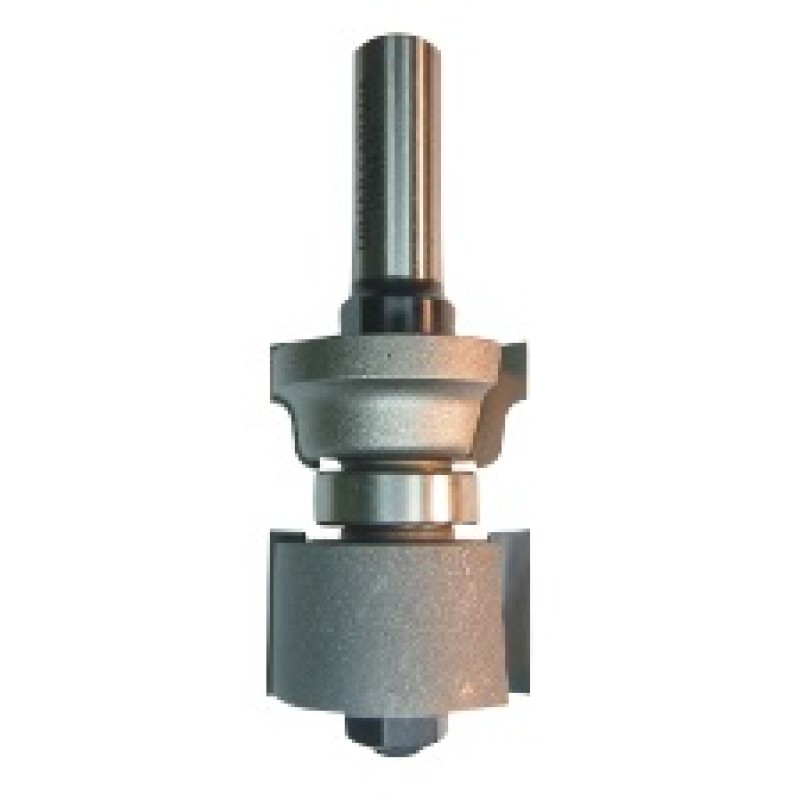

175R8-35 Sash & Rail Bit Reversible 1 Piece 2 Flute 11/16" & 7/8" & 1-7/8" Cutting Height 1-3/8" & 7/8" Diameter 1/2" Shank

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: 175R8-35
Price: $236.26CAD $212.63CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

1 3/8" Dia, Carbide Tipped, Sash & Rail Bit, 2 Flutes, 1/2" Shank, 3 3/4" Length

Dimar's Carbide Tipped Sash & Rail bit is designed to cut window sash and glass door parts, including rails, stiles, mullions, and muntin bars (Muntin is a strip of wood or metal separating and holding panes of glass in a window).

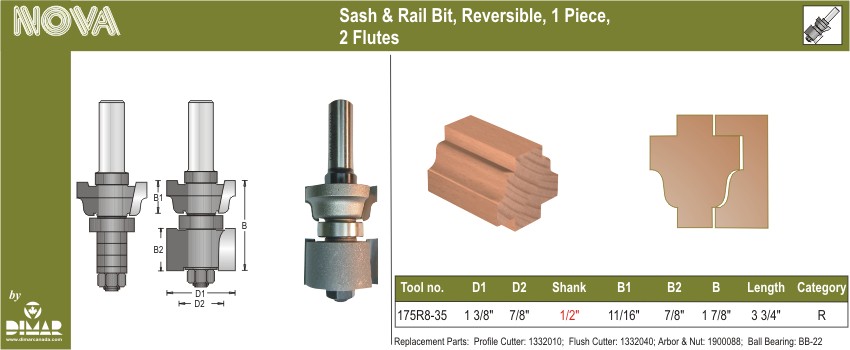

May be used on wood between 1-1/8" and 1-3/4" thick. Assembly includes an ogee profile cutter, a rabbet cutter, one bearing, a 1/2" shank arbor, spacers, shims, and washers. Configure as shown in the drawing to cut profile and rabbet on all parts. To rout the copes, switch bearing and profile cutter and replace rabbet cutter with spacers.

  • Two flutes yield a smooth, crisp cut finish.
  • Cuts most softwood and hardwood.
  • Use on CNC, Hand-Held, and Table Routers.
Diameter (D) 1 3/8"
Number of Cutters 2
D1 7/8"
Shank (d) 1/2"
Cutting Length (B) 1 7/8"
B1 11/16"
B2 7/8"
Overall Length (L) 3 3/4"
Technology Carbide Tipped
Tools Hand Router, Table Router , CNC Machine
Material Soft Wood, Hard Wood
