Cnc Straight Up & Down Shear Bit 20mm Dimar N7R20-20N

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: N7R20-20N
Price: $340.84CAD $306.75CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada Out Of Stock 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

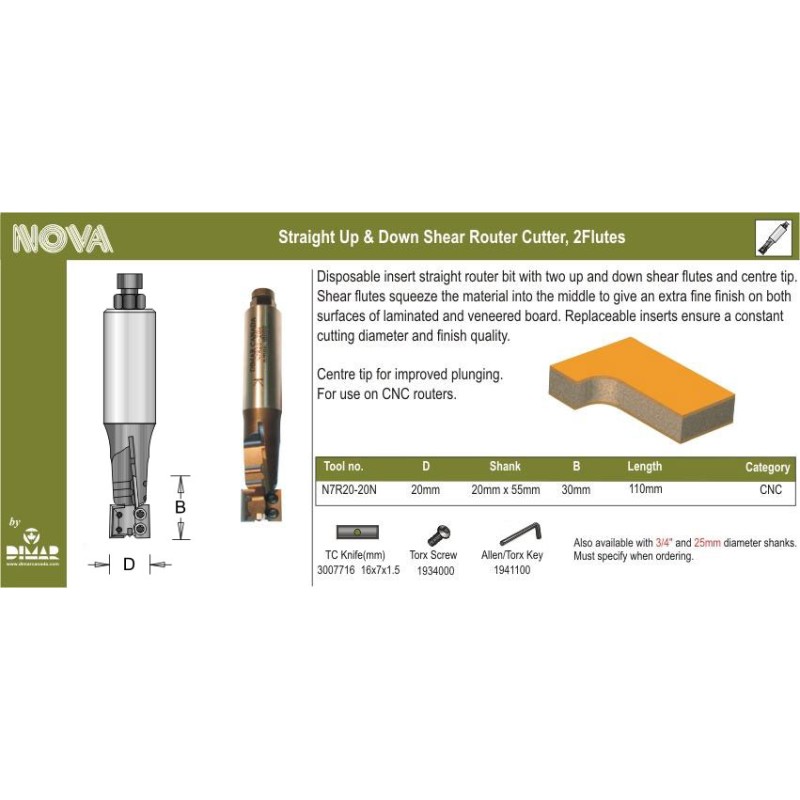

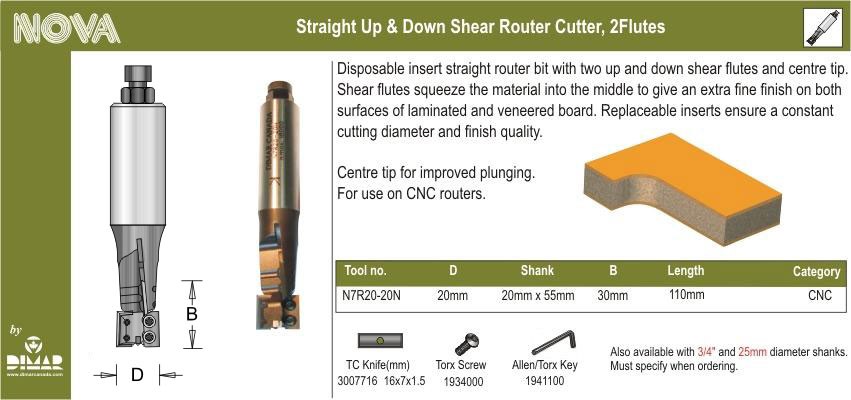

20mm Dia, Carbide Inserts, Straight Up & Down Shear Router Cutter, 20mm Shank, 110mm Length

Disposable insert straight router bit with two up and down shear flutes and center tip.

Shear flutes squeeze the material into the middle to give an extra fine finish on both surfaces of the laminated and veneered board.

Replaceable inserts ensure a constant cutting diameter and finish quality.

  • Centre tip for improved plunging

  • For use on CNC routers

Diameter (D) 20mm
Shank (d) 20mm
Cutting Length (B) 30mm
Overall Length (L) 110mm
Technology Carbide Inserts
Material Veneers, Laminate
Tools CNC Machine
Maximum RPM 18,000
