Cnc Raised Panel - Profile #5 Dimar N126R20-5

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: N126R20-5
Price: $331.27CAD $298.14CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

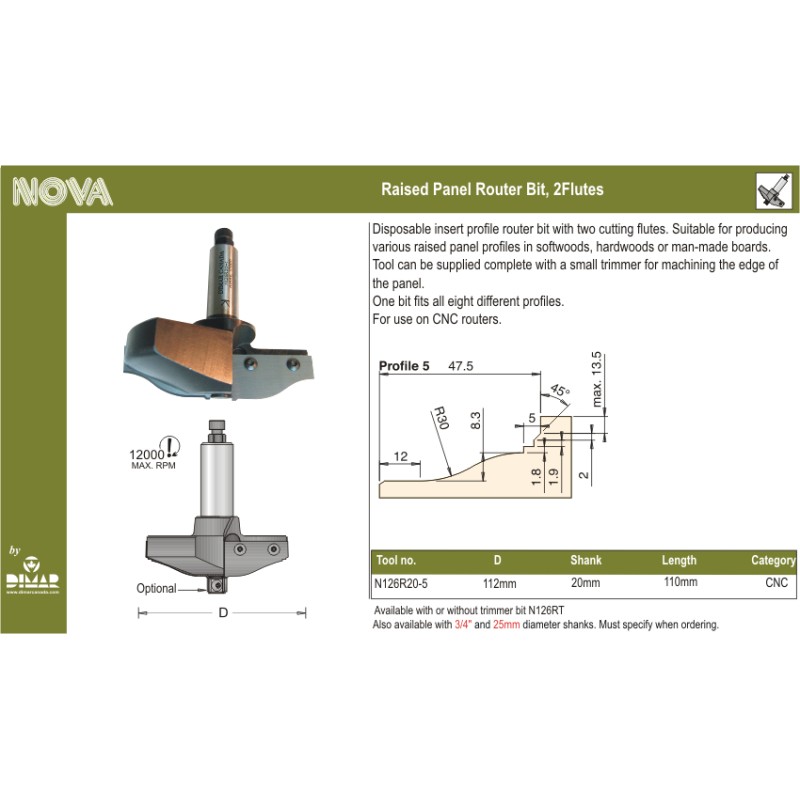

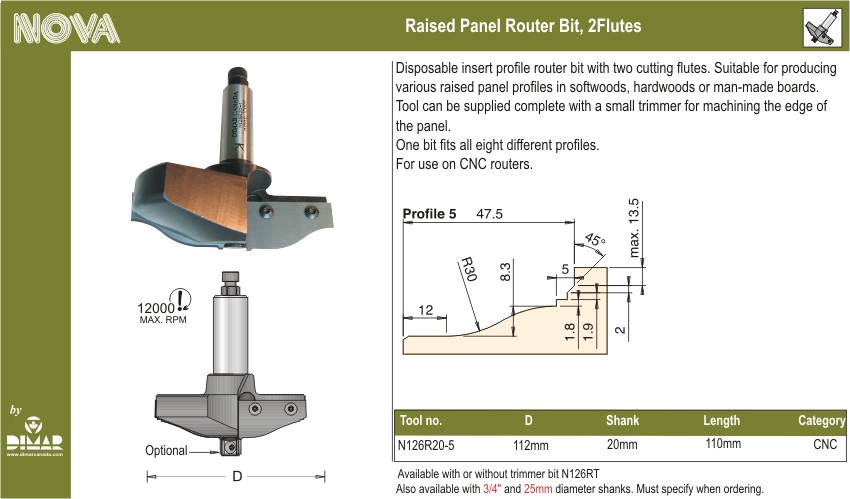

112mm Dia, Carbide Inserts, Multi-Profile Raised Panel Router Cutter, 2 Flutes, 20mm Shank, 110mm Length

Disposable insert profile router bit with two cutting flutes.

Suitable for producing various raised panel profiles in softwoods, hardwoods, or man-made boards.

The tool can be supplied complete with a small trimmer for machining the edge of the panel.

One bit fits all eight different profiles.

Diameter (D) 112mm
Number of Cutters 2
Shank (d) 20mm
Overall Length (L) 110mm
Technology Carbide Inserts
Material Soft Wood, Hard Wood, Composite Material, Plywood, Chipboards
Tools CNC Machine
Maximum RPM 8,000
