Cnc Adj. Bevel Router 20mm Shank Dimar N102R20-45

We will confirm stock on Dimar products prior to processing orders.

Brand: Dimar
Product Code: N102R20-45
Price: $933.61CAD $840.25CAD
Location Availability Min Qty
BC Warehouse Special Order - Delivery Varies 1
Dimar Canada To Be Confirmed 1
Qty:
   - OR -

Discounted Shipping Calculated in the Checkout

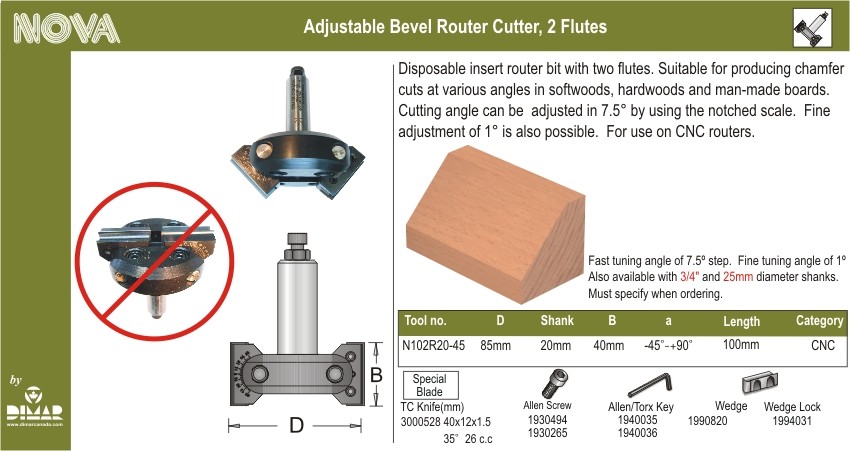

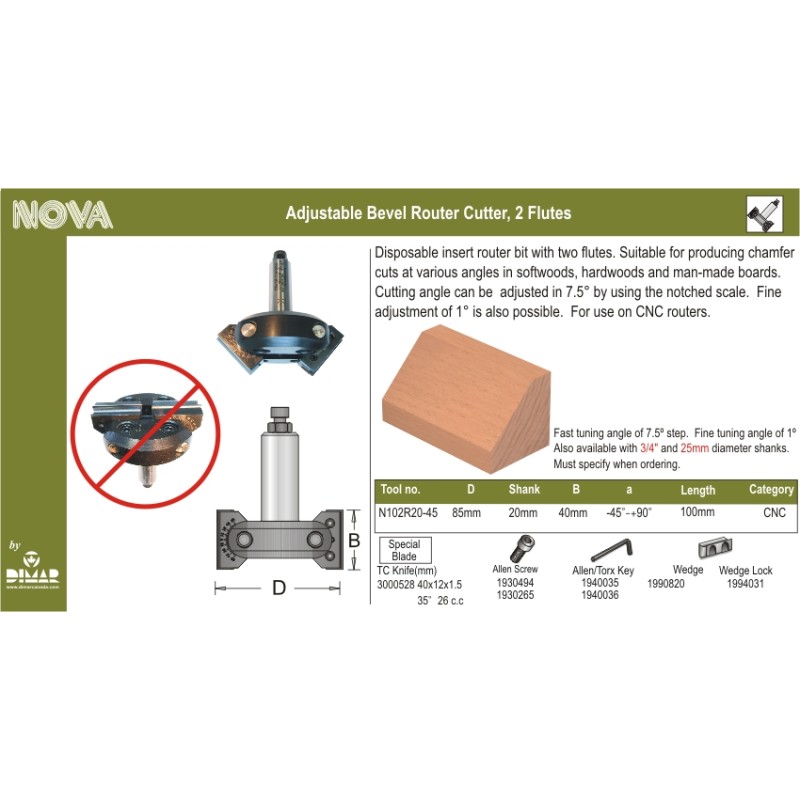

85mm Dia, Carbide Inserts, Adjustable Bevel Cutter, 20mm Shank, 3/4" Length

Disposable insert router cutter complete with two cutting flutes.

Suitable for producing chamfer cuts at various angles in softwood, hardwood, and man-made board.

The cutting angle can be adjusted in 7.5° steps by using a notched scale.

Fine adjustment of 1° is also possible. For use on routers and machining centers with CNC control.


Diameter (D) 85mm
Number of Cutters 2
Shank (d) 20mm
Cutting Length (B) 40mm
Degree (a°) - 45° till 90°
Overall Length (L) 100mm
Tools CNC Machine
Technology Carbide Inserts
Material Soft Wood, Hard Wood, Melamine, Laminate, Plywood, Chipboards
Maximum RPM 12,000
