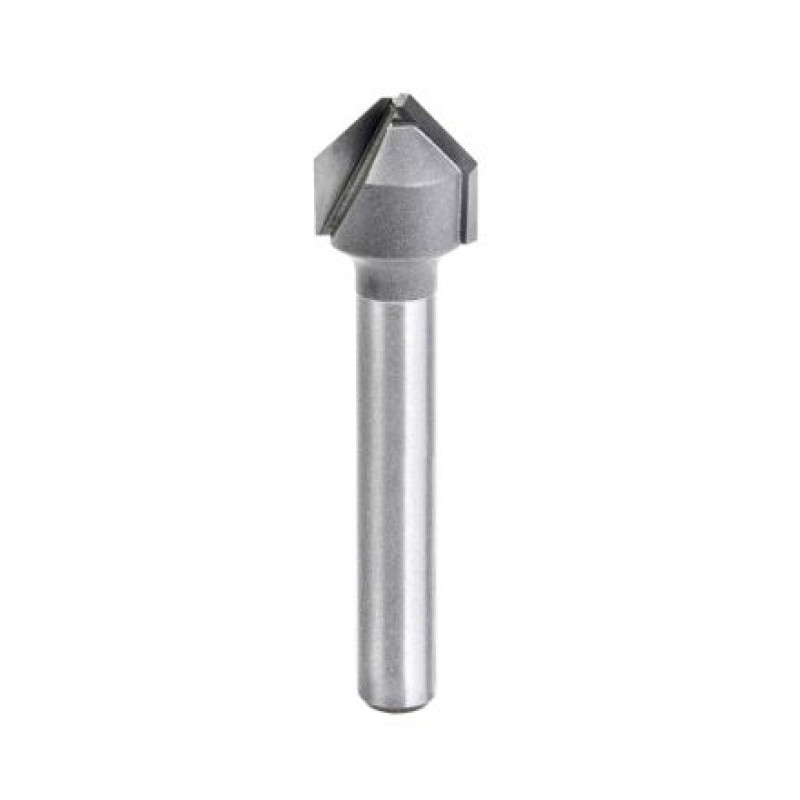

Industrial 105R412AL Carbide Tipped Double Edge V-Groove Bit for ACM

Industrial Carbide Tipped Double Edge V-Groove Bit – 90°

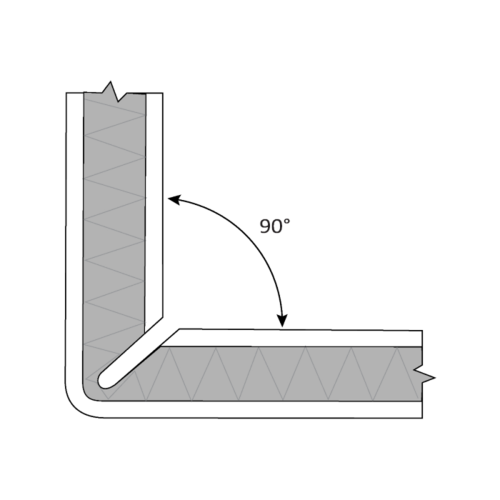

The Industrial 105R412AL carbide tipped double edge V-groove bit is precision engineered for scoring and folding aluminum composite materials (ACM). Featuring a 90° cutting angle with flat-bottom grooves, this bit delivers clean, accurate results that allow panels to be folded by hand without cracking or surface damage.

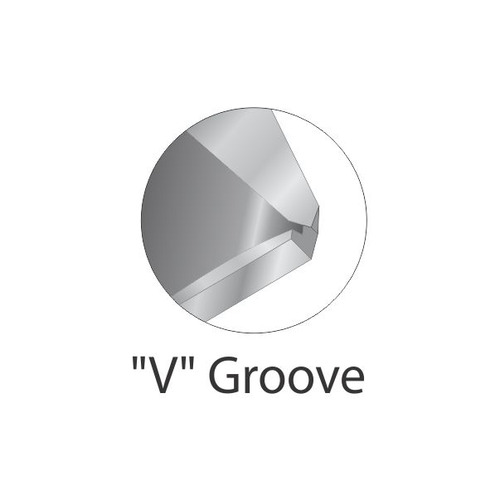

• 90° V-groove profile: Ideal for precise scoring and controlled panel folding
• Carbide tipped cutters: Provides extended tool life and consistent cutting performance
• Double edge design: Ensures smooth finishes and efficient material removal
• 1/4" shank: Compatible with CNC, hand-held, and table-mounted routers
• ACM optimized: Designed for Alucobond®, Dibond®, and similar composite panels

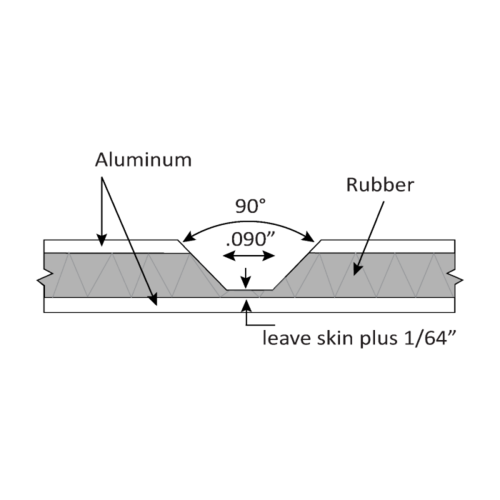

This V-groove router bit is commonly used in architectural cladding, signage, and wall panel fabrication. By routing within 0.8 mm of the panel base, users can achieve a clean bend radius while maintaining structural integrity and a professional appearance.

Select the Industrial 105R412AL V-groove bit for reliable performance, clean folds, and professional results when working with aluminum composite and sandwich materials.
