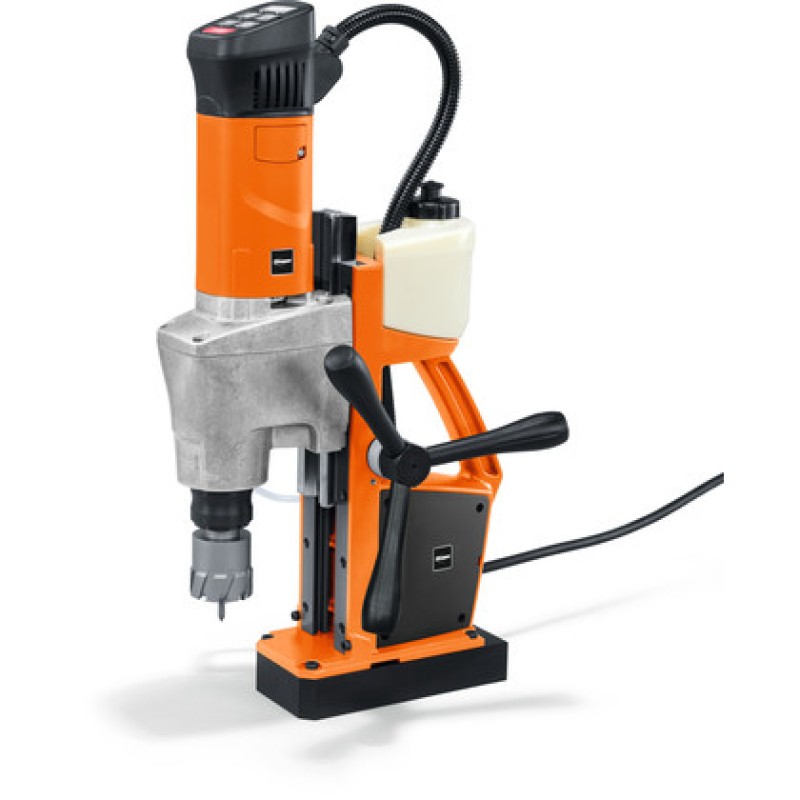

Lightweight with 2-speed gearbox and easy operation for efficient drilling in the workshop and on the construction site.
- Compact with high functionality for universal use on the construction site and in the workshop.
- Simple and error-proof control concept in the operator's field of view.
- Double drill motor guides enable use of the largest annular cutters.
- Reversible
- Electronic speed control.
- Slugger high-power motor with stable speed.
- High magnetic holding force.
- Convenient magnetic holding force gauge.
- Integrated cooling tank.
- Hand feed wheel can be mounted on either side.
Price includes
- 1 case
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 1 pilot pin 4 1/8 in (105 mm)
- 1 touch guard
Technical data
- Carbide annular cutter max. dia.2 In
- HSS annular cutters max. dia.1 9/16 In
- Mag base, max. drilling depth2 In
- Twist drill max. dia.5/8 mm
- Tapping5/8 In
- Max. countersinking dia.1 1/4 In
- Reaming max. dia.5/8 In
- Power consumption1,200 Watts
- Power output610 Watts
- Load speed: 1st gear130-260 rpm
- Load speed: 2nd gear260-520 rpm
- Annular cutter holderQuickIN
- Stroke5 11/16 In
- Magnetic holding force2,750 lbs
- Magnetic base dimensions7 11/16 x 3 9/16 In
- Cable with plug13 ft
- Weight according to EPTA29.1 lbs
Order no. 7 270 58 61 12 0
