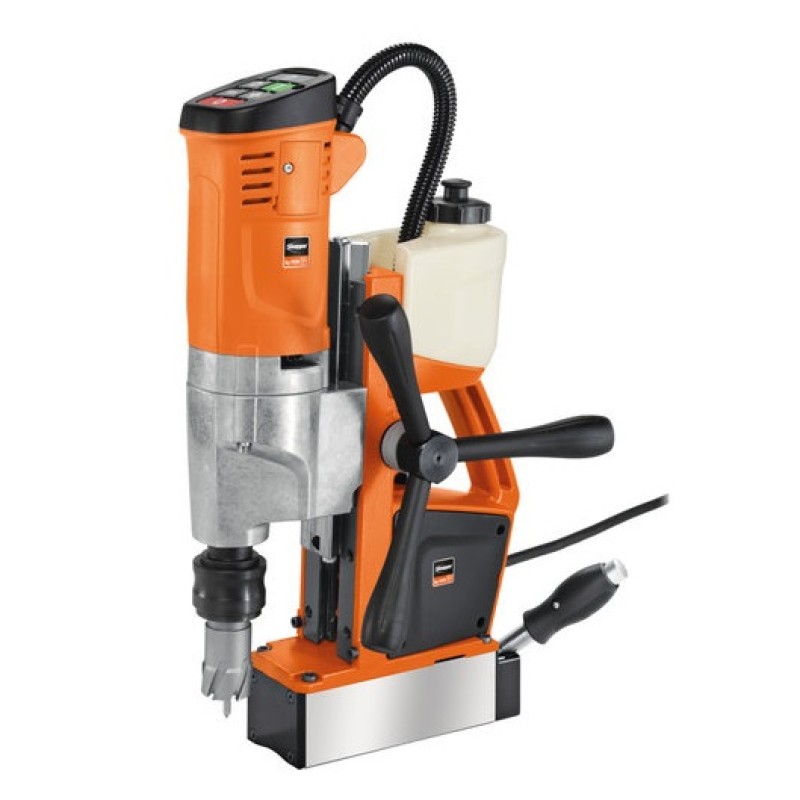

Small, long-stroke, 1-speed universal magnetic core drill with forward / reverse rotation, permanent magnet and maximum functionality for safe and versatile work on the construction site.
- Permanent magnet for extremely safe work at heights as well as a pivoting motor cable protection sleeve and high-quality workmanship for tough use.
- Lightweight, compact tool with powerful torque for sustained high work progress thanks to the FEIN high-performance motor with tacho electronics.
- Machine with extra large stroke for all drilling work, such as core and spiral drilling, tapping, countersinking and grinding.
- Extra narrow permanent magnet with magnetic bias.
- Tilt sensor.
- Simple and error-proof control concept in the operator's field of view.
- Convenient magnetic holding force gauge.
- Reversible.
- Integrated cooling tank.
- "Memory function" speed storage.
- Hand feed wheel can be mounted on either side.
Order no. 7 270 73 61 09 0
Price includes
- 1 coolant tank
- 1 safety strap
- 1 chip hook
- 3 pilot pins
- 1 touch guard
Technical data
- Power consumption 1,010 Watts
- Power output 550 Watts
- Full load speed 130-520 rpm
- Carbide annular cutter max. dia. 1-3/8 In
- HSS annular cutters max. dia. 1-3/8 In
- Mag base, max. drilling depth 2 In
- Twist drill max. dia. 5/8 In
- Tapping 9/16 In
- Max. countersinking dia. 1-1/4 In
- Reaming max. dia. 5/8 In
- Annular cutter holder 3/4 in Weldon
- Annular cutter change tool-free
- Stroke 5-5/16 In
- Total stroke range 10-1/4 In
- Magnetic holding force 2,023 lbs
- Magnetic base dimensions 7-11/16 x 2-3/4 In
- Cable with plug 13 ft
- Weight according to EPTA 27.56 lbs
