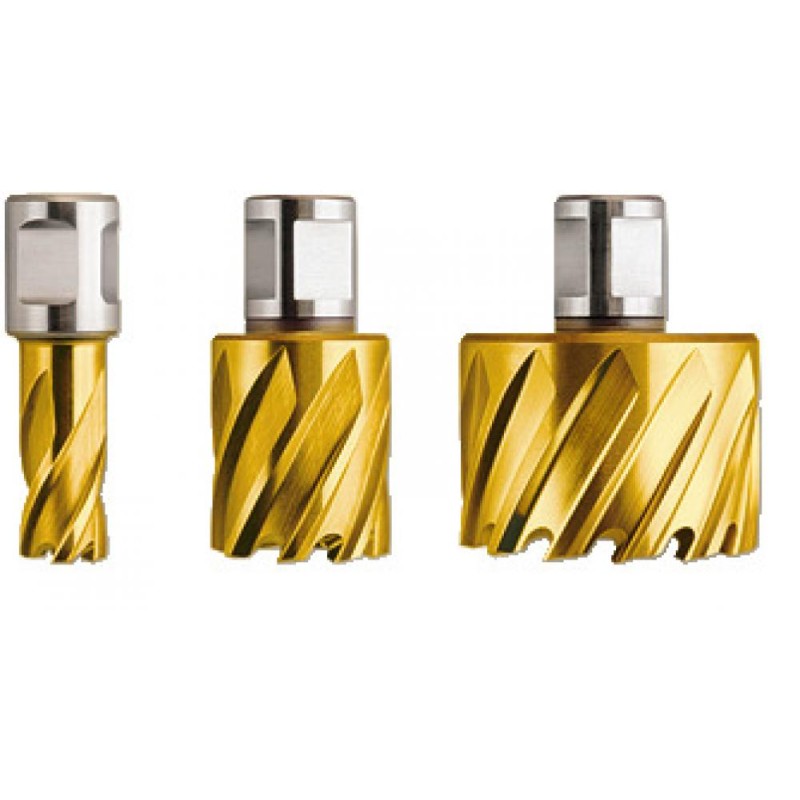

63134762104 Slugger Cutter TiN 3" Diameter x 2" Depth 3/4" SS

Fein Annular Cutter

The Jancy Slugger high-speed steel annular cutter with titanium nitride (TiN) coating, 2” depth, and a 3/4” annular cutter shank is used to create through holes as deep as 2” in a range of materials, with best performance in hard-to-machine materials as well as mild steel and stainless steel. An annular cutter removes only the circumference of a through hole (extending through the workpiece), releasing the central material as a slug when the hole has been cut. The center-free design of the tool results in energy efficiency and reduced cycle time: the operator can produce holes three to five times faster than with a conventional twist drill that must convert the entire hole into chips. In addition, this tool’s multiple cutting edges can create an accurate, burr-free hole that minimizes the need for secondary operations such as pre-drilling and reaming.

Features:

• Center-free design creates through holes by cutting only the periphery of the hole for greater productivity in comparison to twist drills
• Multiple cutting edges create a high-quality hole that minimizes the need for secondary operations such as pre-drilling and reaming
• Titanium nitride (TiN) coating combines hardness with low friction for extended tool life and faster cutting
• High-speed steel is compatible with a variety of materials
• 3/4" annular cutter shank can be used in a drill press, mill, or lathe

Specifications:

• Cutter Diameter: 3"
• Cutting Depth: 2"
• Shank Diameter: 3/4"
• Made from TiN coating for improved service life and greater lubricity.
• 3/4 in. Weldon shank allows cutter to be used with other competitive magnetic drills
