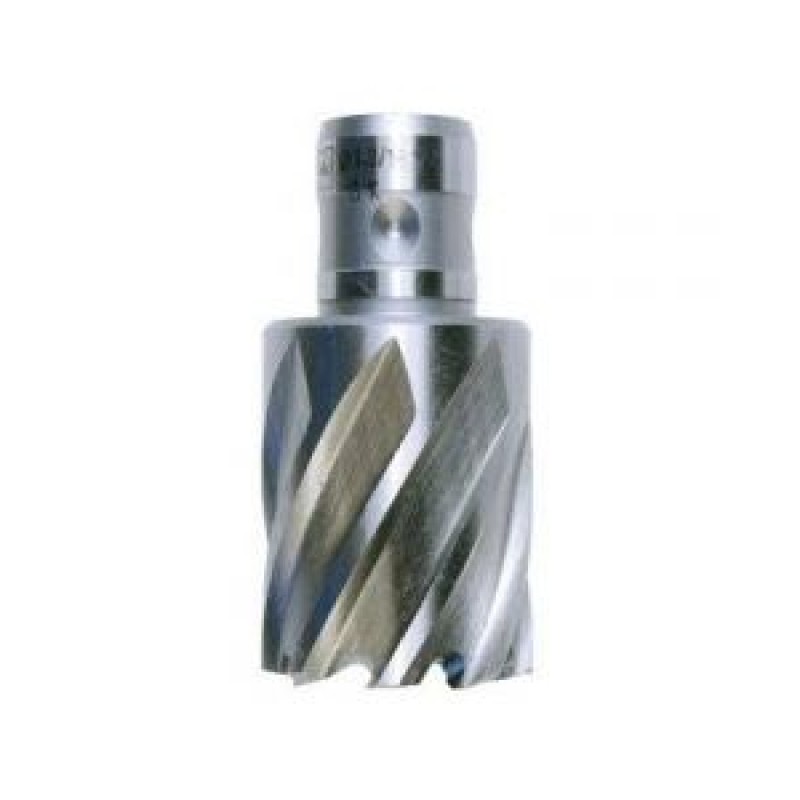

63134745001 Slugger Cutter 2-15/16" Diameter x 1" Depth 3/4" Shank S2937-.75S

Fein Annular Cutter

The Jancy Slugger uncoated, high-speed steel metric annular cutter with 1” depth and a 3/4” annular cutter shank is used to create metric-sized through holes as deep as 1” in a range of materials, with best performance in mild steel and structural steel. An annular cutter removes only the circumference of a through hole (extending through the workpiece), releasing the central material as a slug when the hole has been cut. The center-free design of the tool results in energy efficiency and reduced cycle time: the operator can produce holes three to five times faster than with a conventional twist drill that must convert the entire hole into chips. In addition, this tool’s multiple cutting edges can create an accurate, burr-free hole that minimizes the need for secondary operations such as pre-drilling and reaming.

Slugger Advantages:

• Drill holes 3 times faster than twist drills
• Drill unique and curved surfaces
• Allow overlap cuts on existing holes
• Produce reamed quality burr-free holes
• Coolant fed cutting edges
• Produces solid slug.
• Reduce machine size and horsepower requirements
• Manufactured with C.N.C. accuracy
• Resharpenable cutting edges
• Eliminate time consuming, costly pilot holes and step drilling

Specifications:

• Made from (M2) High Speed Steel for long service life
• 3/4 in. Weldon shank allows cutter to be used with other competitive magnetic drills
• Requires Pilot Pin 16003
• Suitable for aluminum and other non-ferrous metals
• High-Speed Steel  1" Depth  3/4" Weldon Shank
• Made in USA
